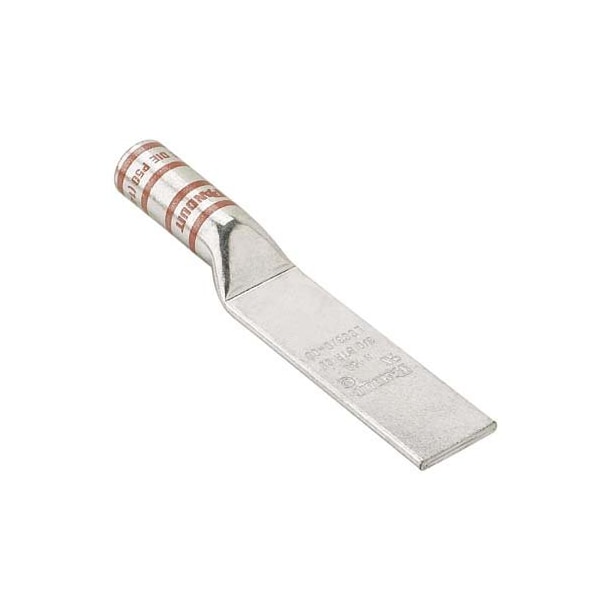

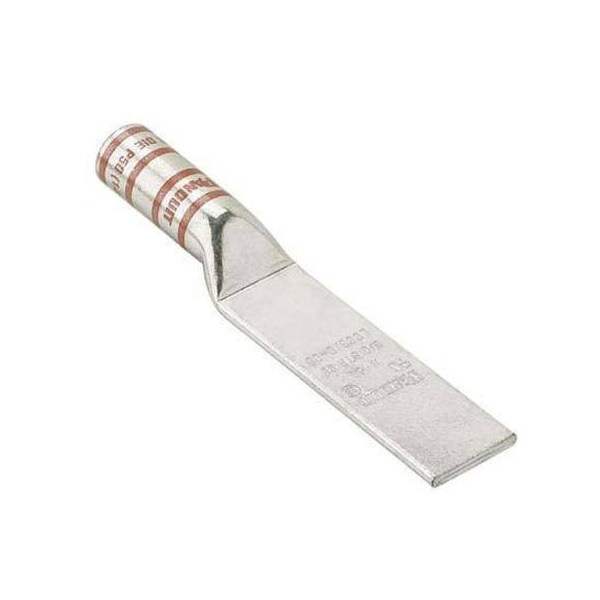

Terminal de compresión de cobre, lengüeta en blanco, 50.
| Length | 1.9 in |
|---|---|
| Color Code | Brown |
| Overall Length | 6.36 in |
| Features | Corrosion Resistant |
| Wire Strip Length (In.) | 2.56 |
| Panduit Die Index Number | P87 |
| Barrel Length (In.) | 2.49 |
| Wire Strip Length (mm) | 65.1 |
| Tongue Thickness (mm) | 5.6 |
| Tongue Width (In.) | 1.54 |
| Tongue Width (mm) | 39.1 |
| Maximum Voltage (kV) | 35 |
| UL Temperature Rating (°C) | 90 |
| Barrel Length (mm) | 63.2 |
| Base Material | Copper |
| Product Type | Compression Connectors - Lugs |
| Copper Code Conductor Size (kcmil) | 500 |
| Finish/Coating | Tin-Plated |
| Tongue Thickness (In.) | 0.22 |
| Tongue Type | Standard |
| Overall Length (mm) | 161.5 |
| Burndy Die Index Number | 20 |
| Overall Length (In.) | 6.36 |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Class | Wire Termination |
| Package Quantity | 1 |
