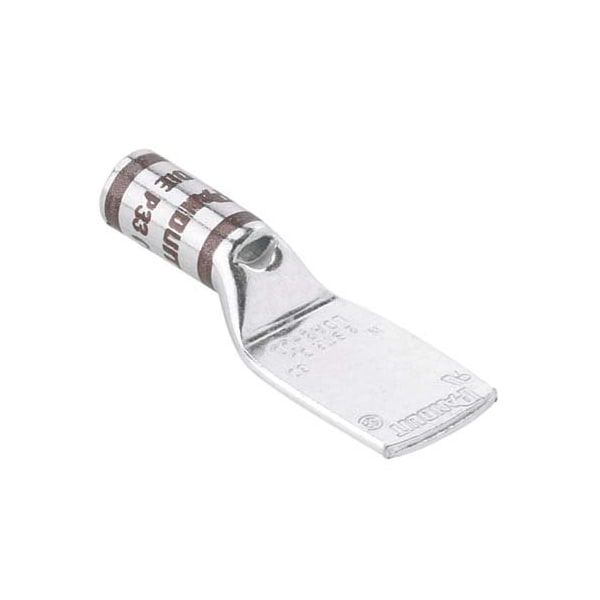

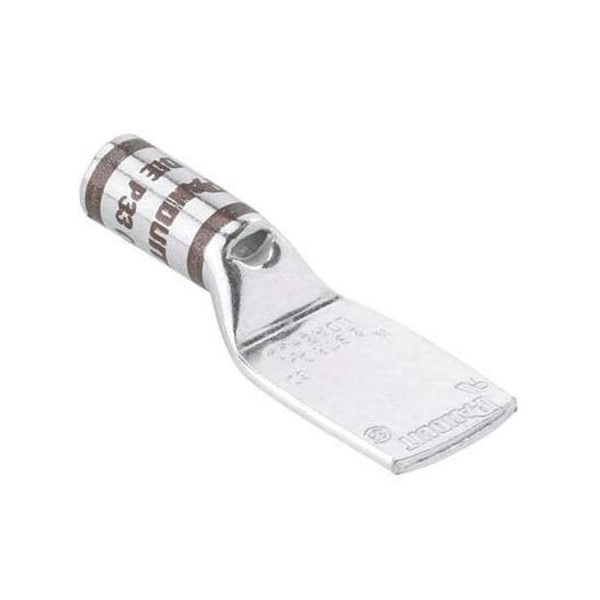

Terminal de compresión de cobre, lengüeta en blanco, 60.
| Length | 2.1 in |
|---|---|
| Color Code | Green |
| Overall Length | 4.2 in |
| Features | Corrosion Resistant |
| Product Type | Compression Connectors - Lugs |
| Wire Strip Length (mm) | 46 |
| Tongue Width (mm) | 43.2 |
| Tongue Width (In.) | 1.7 |
| Wire Strip Length (In.) | 1.81 |
| Panduit Die Index Number | P94 |
| Copper Code Conductor Size (kcmil) | 600 |
| Tongue Thickness (In.) | 0.26 |
| Maximum Voltage (kV) | 35 |
| Overall Length (mm) | 106.7 |
| Finish/Coating | Tin-Plated |
| UL Temperature Rating (°C) | 90 |
| Tongue Thickness (mm) | 6.6 |
| Base Material | Copper |
| Tongue Angle | Straight |
| Overall Length (In.) | 4.2 |
| Burndy Die Index Number | 22 |
| Barrel Length (In.) | 1-3/4 |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Connector Details | 1 x Terminal |
| Product Class | Wire Termination |
| Package Quantity | 1 |
