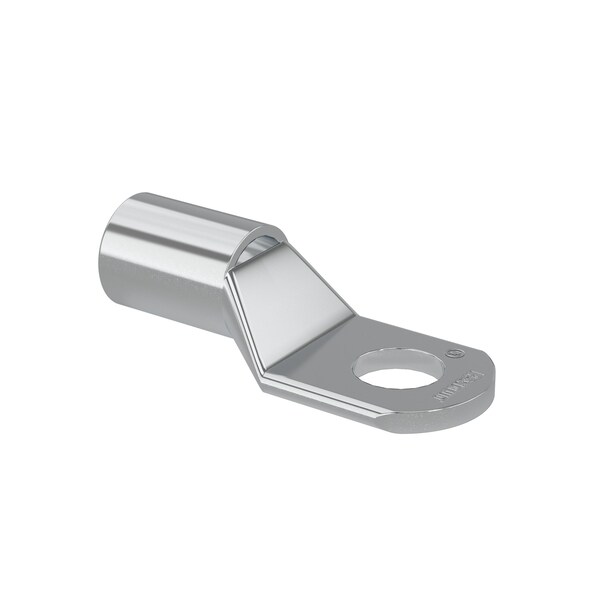

Compresión de cobre Métrico con una sola lengüeta, para cable de 120mm², M12, LCMA120-12-L.
| Length | 2.6 in |
|---|---|
| Features | Corrosion Resistant |
| Base Material | Copper |
| Tongue Width (In.) | 1.08 |
| Wire Strip Length (mm) | 26.9 |
| Finish/Coating | Tin-Plated |
| Lug Type | 1 Stud Hole Lug |
| Outer Diameter (In.) | 0.73 |
| Barrel Type | Standard Barrel, Barrel with Inspection Window |
| Barrel Length (mm) | 24.5 |
| Tongue Thickness (mm) | 3.5 |
| Tongue Angle | Straight |
| Metric Class 2r Copper Conductor Size (mm²) | 120 |
| Maximum Voltage (kV) | 35 |
| Outer Diameter (mm) | 18.54 |
| Inside Diameter (mm) | 14.98 |
| Wire Strip Length (In.) | 42,370 |
| Overall Length (In.) | 2.55 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 95 |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| Tongue Thickness (In.) | 0.13 |
| Product Type | Copper Compression Lugs, Compression Metric Lugs, Copper Metric Lugs |
| Barrel Length (In.) | 0.96 |
| Overall Length (mm) | 64.7 |
| Tongue Type | Standard |
| Inside Diameter (In.) | 0.59 |
| Tongue Width (mm) | 27.5 |
| Stud Hole Size (mm) | 12 |
| UL Temperature Rating (°C) | 90 |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
