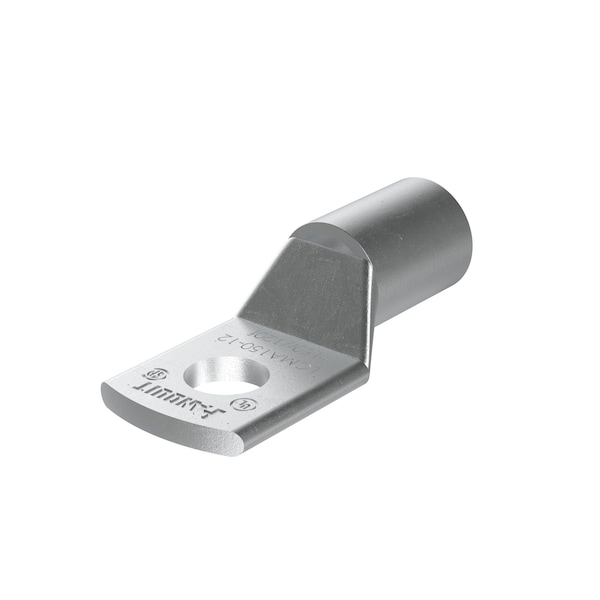

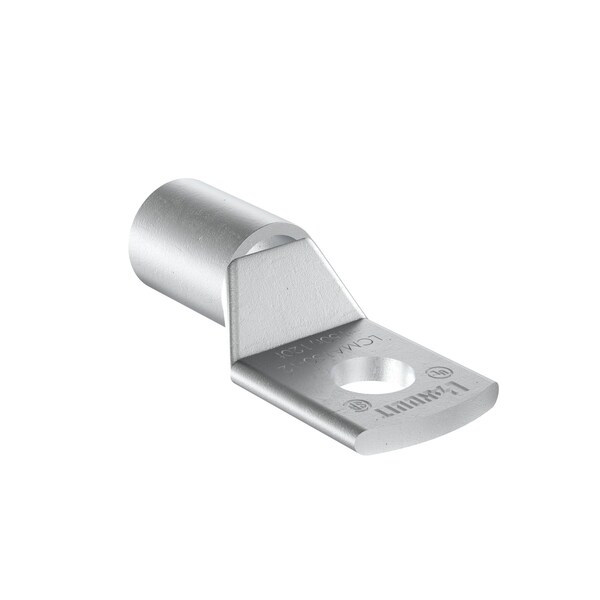

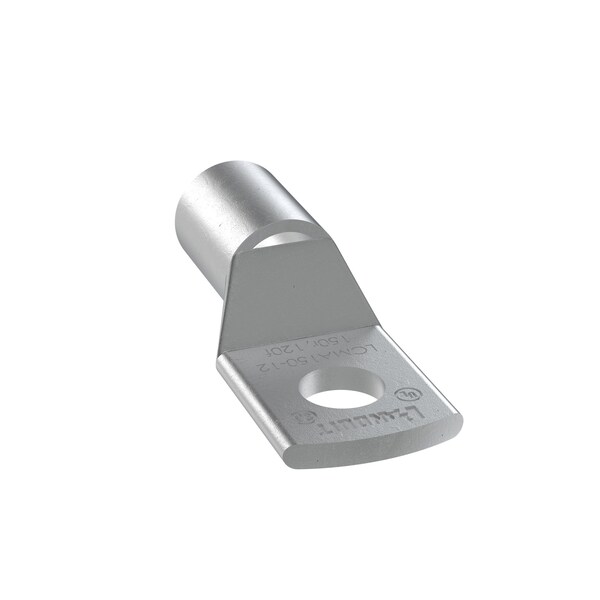

Compresión de cobre, boquilla métrica, 1 orificio, cable de 150mm², M12, LCMA150-12-X.
| Length | 2.8 in |
|---|---|
| Overall Length | 8 ft |
| Features | Corrosion Resistant |
| Stud Hole Size (In.) | 0.55 |
| Tongue Thickness (mm) | 4.5 |
| Outer Diameter (In.) | 0.82 |
| Overall Length (In.) | 2.77 |
| Tongue Width (mm) | 30.5 |
| Tongue Angle | Straight |
| Base Material | Copper |
| Inside Diameter (mm) | 16.5 |
| Tongue Type | Standard |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (mm) | 14 |
| Inside Diameter (In.) | 0.64 |
| Tongue Thickness (In.) | 0.17 |
| Wire Strip Length (In.) | 1.14 |
| UL Temperature Rating (°C) | 90 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 120 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Metric Class 2r Copper Conductor Size (mm²) | 150 |
| Product Type | Copper Compression Lugs, Compression Metric Lugs, Copper Metric Lugs |
| Outer Diameter (mm) | 21 |
| Barrel Length (In.) | 1.08 |
| Tongue Width (In.) | 1.2 |
| Barrel Length (mm) | 27.5 |
| Overall Length (mm) | 70.5 |
| Panduit Die Index Number | P66 |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| Wire Strip Length (mm) | 29 |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Product Class | Wire Termination |
| Package Quantity | 1 |
