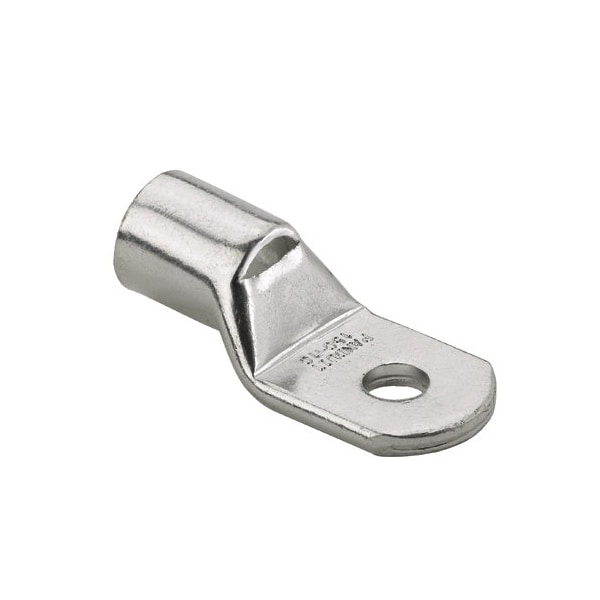

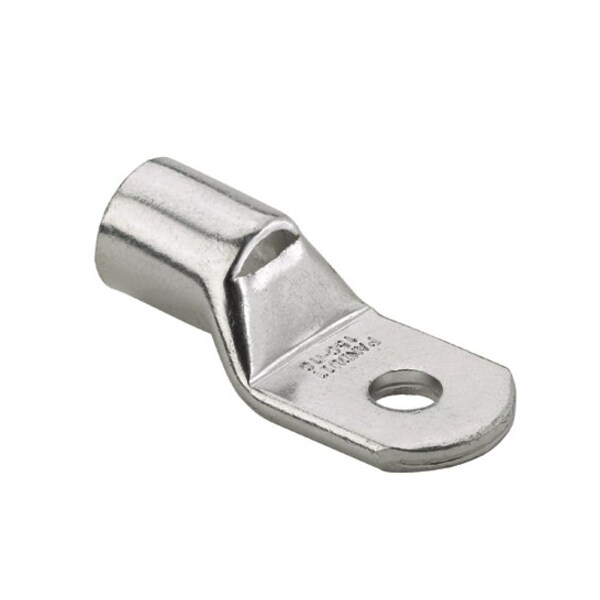

Terminal de compresión métrica de cobre, con 1 agujero, cable de 300mm², M16, LCMA300-16-5
| Length | 3.7 in |
|---|---|
| Features | Corrosion Resistant |
| Lug Type | Standard |
| UL Temperature Rating (°C) | 90 |
| Stud Hole Size (In.) | 0.7 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Tongue Width (mm) | 42.5 |
| Tongue Thickness (mm) | 5.4 |
| Wire Strip Length (mm) | 41.8 |
| Inside Diameter (mm) | 23.5 |
| Outer Diameter (mm) | 29 |
| Outer Diameter (In.) | 1.14 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 240 |
| Product Type | Copper Compression Lugs, Compression Metric Lugs, Copper Metric Lugs |
| Overall Length (mm) | 94.5 |
| Overall Length (In.) | 3.72 |
| Tongue Angle | Straight |
| Stud Hole Size (mm) | 18 |
| Wire Strip Length (In.) | 1.64 |
| Base Material | Copper |
| Tongue Width (In.) | 0.67 |
| Finish/Coating | Tin-Plated |
| Tongue Type | Standard |
| Barrel Length (In.) | 1.58 |
| Panduit Die Index Number | P94 |
| Maximum Voltage (kV) | 35 |
| Tongue Thickness (In.) | 0.21 |
| Barrel Length (mm) | 40.3 |
| Inside Diameter (In.) | 0.92 |
| Standards Met | UKCA compliant, CE compliant |
| Metric Class 2r Copper Conductor Size (mm²) | 300 |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Product Class | Wire Termination |
| Package Quantity | 1 |
