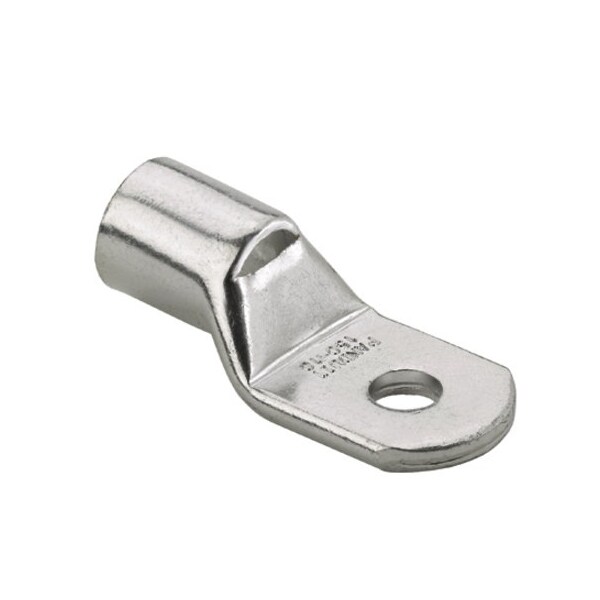

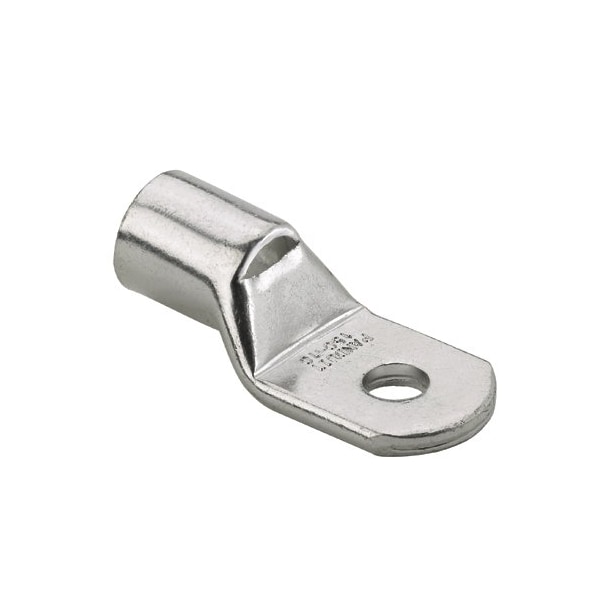

Cobre Compresión Métrica Terminal, 1 Orificio, 5
| Length | 1.8 in |
|---|---|
| Overall Length | 46.5 mm |
| Features | Corrosion Resistant |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| Base Material | Copper |
| Outer Diameter (In.) | 0.48 |
| Wire Strip Length (mm) | 21.8 |
| Barrel Length (mm) | 20.3 |
| Overall Length (mm) | 46.5 |
| Stud Hole Size (In.) | 0.43 |
| Wire Strip Length (In.) | 0.85 |
| Barrel Length (In.) | 0.8 |
| Finish/Coating | Tin-Plated |
| Overall Length (In.) | 1.8 |
| Metric Class 2r Copper Conductor Size (mm²) | 50 |
| Tongue Width (In.) | 0.7 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 35 |
| Panduit Die Index Number | P37 |
| Maximum Voltage (kV) | 35 |
| Tongue Type | Standard |
| Tongue Thickness (In.) | 0.09 |
| Tongue Angle | Straight |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Stud Hole Size (mm) | 11 |
| UL Temperature Rating (°C) | 90 |
| Tongue Thickness (mm) | 2.5 |
| Outer Diameter (mm) | 12.3 |
| Tongue Width (mm) | 18 |
| Product Type | Copper Compression Lugs, Compression Metric Lugs, Copper Metric Lugs |
| Product Material | Copper |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Product Class | Lugs |
| Package Quantity | 1 |
