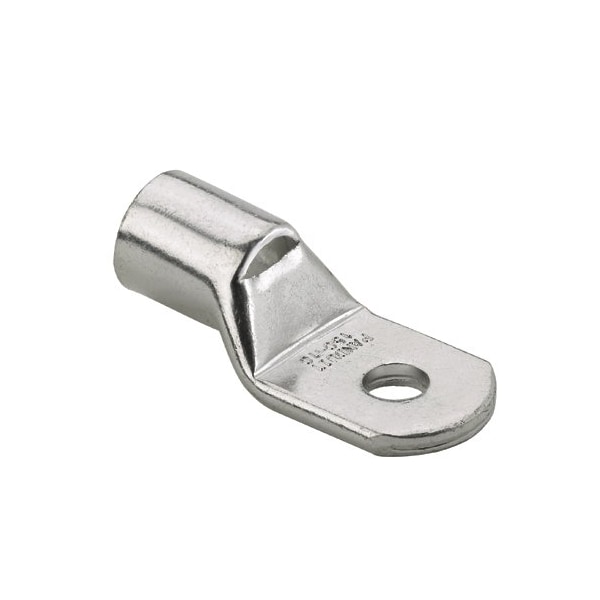

Conector métrico de compresión de cobre, 1 perforación, curva de 90 grados.
| Overall Length | 60.5 mm |
|---|---|
| Tool Type | Lug |
| Standards | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| Overall Length (mm) | 60.5 |
| Barrel Length (mm) | 24.5 |
| Product Type | Copper Compression Lugs, Compression Metric Lugs, Copper Metric Lugs |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| Wire Strip Length (mm) | 26 |
| Tongue Thickness (mm) | 3 |
| Product Class | Wire Termination |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Package Quantity | 1 |
