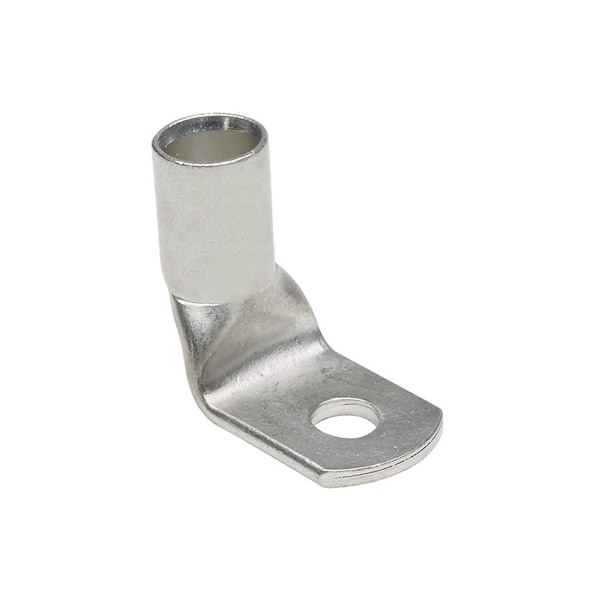

Compresión de Cobre Térmico, Terminal Métrico de Ojal con 1 Orificio, S
| Length | 2.1 in |
|---|---|
| Overall Length | 54.2 mm |
| Features | Corrosion Resistant, 90° Angled Connector |
| Overall Length (mm) | 54.2 |
| Wire Strip Length (mm) | 26 |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| Tongue Thickness (mm) | 3.5 |
| Product Type | Copper Compression Lugs, Compression Metric Lugs, Copper Metric Lugs |
| Barrel Length (mm) | 24.5 |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Product Class | Wire Termination |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Package Quantity | 1 |
