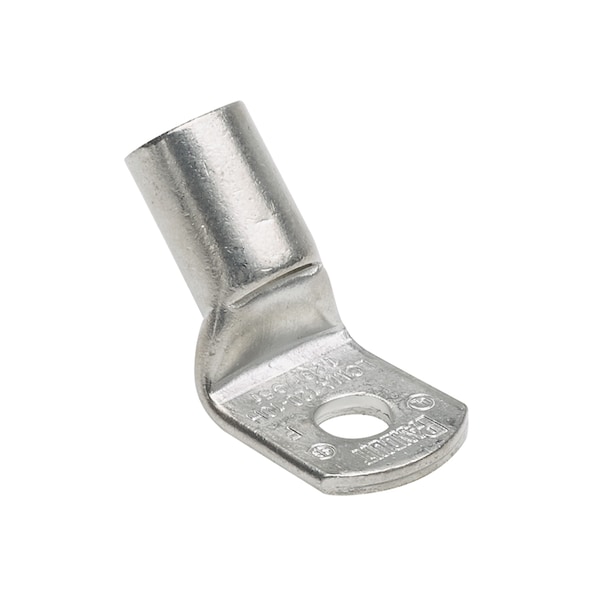

Cobre Compresión MétricoTerminal, 1 Orificio, Barril Estándar, LCMA70-8H-L, Paquete de 50
| Length | 1.8 in |
|---|---|
| Overall Length | 46.8 mm |
| Features | 45° Angled Connector, Corrosion Resistant |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| Barrel Length (mm) | 23.3 |
| Product Type | Copper Compression Lugs, Compression Metric Lugs, Copper Metric Lugs |
| Overall Length (mm) | 46.8 |
| Wire Strip Length (mm) | 24.8 |
| Tongue Thickness (mm) | 2.9 |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Connector Details | 1 x Terminal |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Product Class | Wire Termination |
| Package Quantity | 1 |
