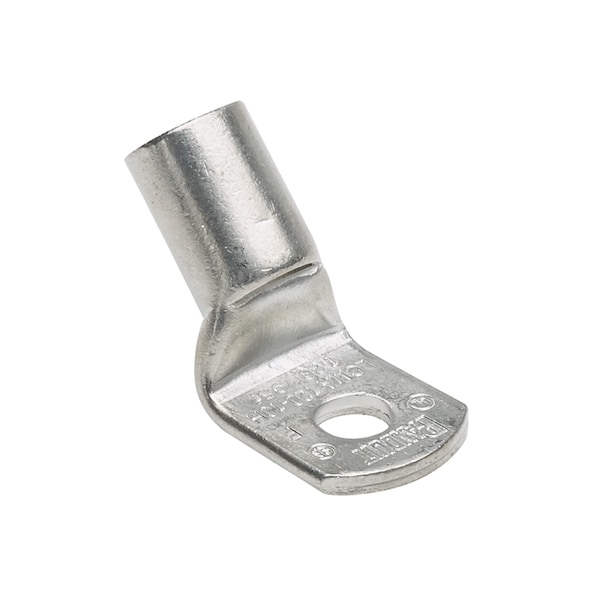

Compresión de cobre, Terminal métrico de un agujero, Barril estándar, LCMA95-10H-L, Paquete con 50 unidades.
| Length | 2.1 in |
|---|---|
| Overall Length | 52.6 mm |
| Features | Corrosion Resistant, 45° Angled Connector |
| Tongue Thickness (mm) | 3.1 |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| Overall Length (mm) | 52.6 |
| Wire Strip Length (mm) | 26 |
| Barrel Length (mm) | 24.5 |
| Product Type | Copper Compression Lugs, Compression Metric Lugs, Copper Metric Lugs |
| Connector Details | 1 x Terminal |
| Connector Plating | Tin |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Product Class | Wire Termination |
| Package Quantity | 1 |
