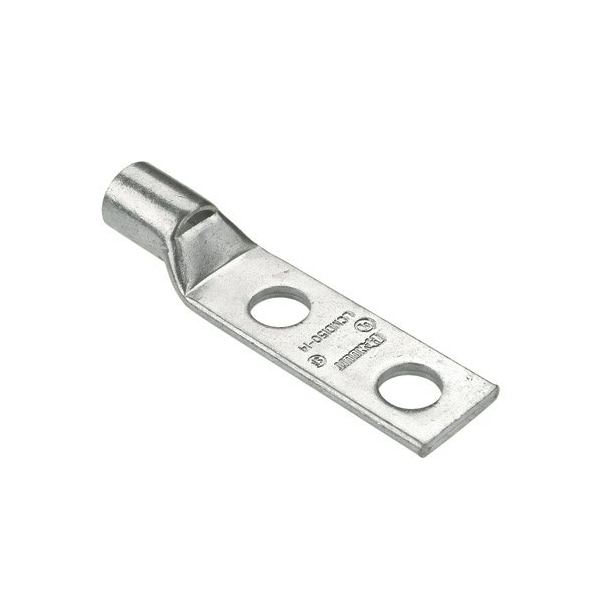

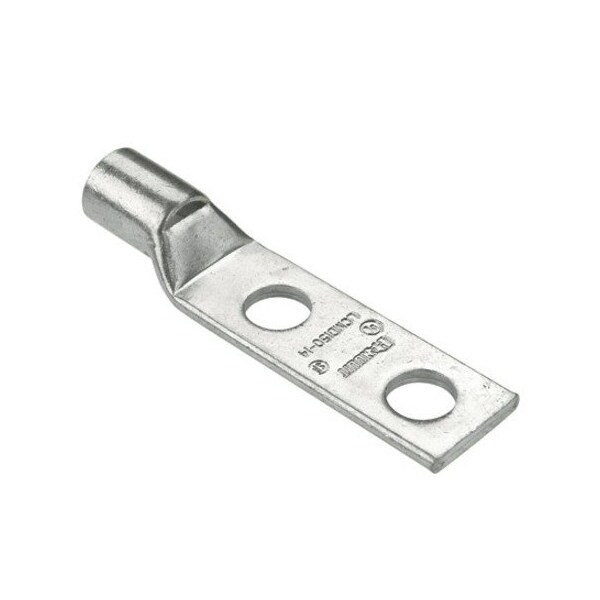

Conector métrico de compresión de cobre, 2 agujeros, cable de 150mm², M12, LCMD150-12-X.
| Length | 4-1/2 in |
|---|---|
| Features | Corrosion Resistant |
| Stud Hole Spacing (mm) | 44.5 |
| Product Type | Copper Compression Lugs, Compression Metric Lugs, Copper Metric Lugs |
| Barrel Length (mm) | 27.5 |
| Overall Length (mm) | 115 |
| Wire Strip Length (mm) | 29 |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| Tongue Thickness (mm) | 4.5 |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Product Class | Wire Termination |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Package Quantity | 1 |
