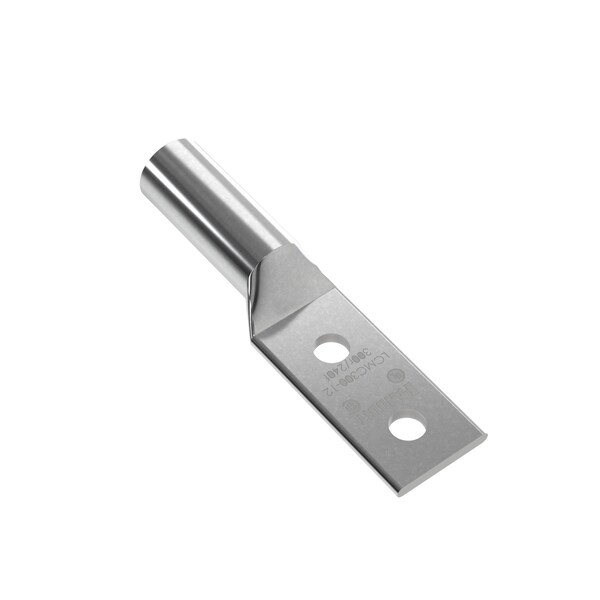

Compresión de cobre para Terminal Metric Lug, con 2 hoyos. (L)
| Length | 6.6 in |
|---|---|
| Overall Length | 6.57 in |
| Features | Corrosion Resistant |
| Barrel Type | Long Barrel Length without Inspection Window |
| Wire Strip Length (mm) | 70 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.2 |
| Tongue Width (mm) | 5.3 |
| Stud Hole Size (In.) | 0.55 |
| Overall Length (mm) | 167.1 |
| Barrel Length (In.) | 1.14 |
| Tongue Angle | Straight |
| Outer Diameter (mm) | 29 |
| Finish/Coating | Tin Plated |
| Metric Class 2r Copper Conductor Size (mm²) | 300 |
| Maximum Voltage (kV) | 35 |
| Product Type | Copper Compression Lugs, Compression Metric Lugs, Copper Metric Lugs |
| Wire Strip Length (In.) | 2.75 |
| Inside Diameter (mm) | 23.5 |
| Outer Diameter (In.) | 0.14 |
| Stud Hole Spacing (In.) | 1.75 |
| Lug Type | Long Barrel |
| Barrel Length (mm) | 68.4 |
| Stud Hole Size (mm) | 14 |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| Panduit Die Index Number | P94 |
| Inside Diameter (In.) | 0.92 |
| Base Material | Copper |
| Overall Length (In.) | 6.57 |
| Tongue Thickness (mm) | 5.4 |
| Metric Class 5f-6f Copper Conductor Size (mm²) | 240 |
| UL Temperature Rating (°C) | 90 |
| Stud Hole Spacing (mm) | 44.5 |
| Connector Plating | Tin |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Outside Diameter Inches | 0.14 in |
| Package Quantity | 1 |
