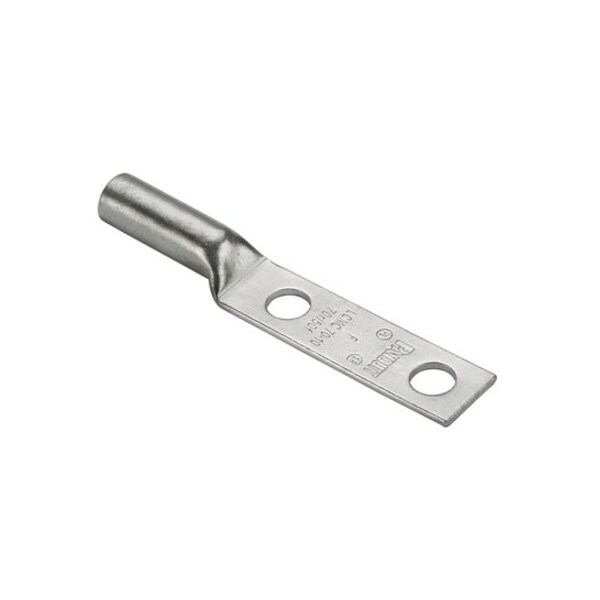

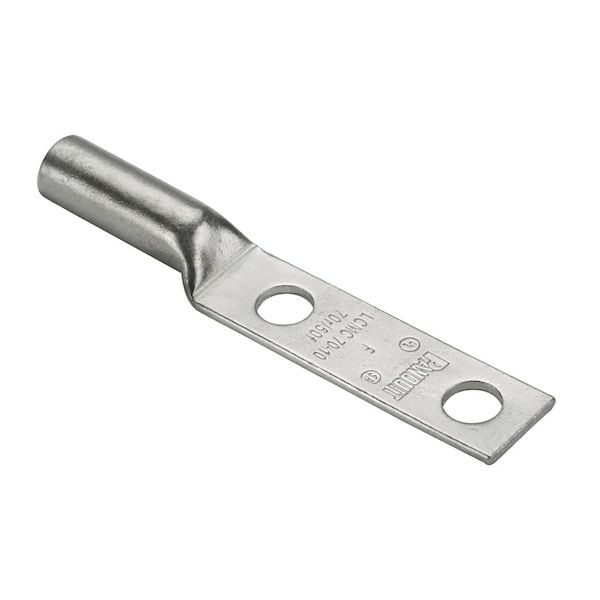

Terminal de compresión métrica de cobre, 2 agujeros.
| Length | 4.4 in |
|---|---|
| Overall Length | 112.7 mm |
| Features | Corrosion Resistant |
| Wire Strip Length (mm) | 39.6 |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire, UKCA compliant, CE compliant |
| Barrel Length (mm) | 38 |
| Tongue Thickness (mm) | 2.8 |
| Product Type | Copper Compression Lugs, Compression Metric Lugs, Copper Metric Lugs |
| Overall Length (mm) | 112.7 |
| Finish/Coating | Tin Plated |
| Stud Hole Spacing (mm) | 44.5 |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Connector Details | 1 x Terminal |
| Barrel Type | Long Barrel Length without Inspection Window |
| Product Class | Wire Termination |
| Package Quantity | 1 |
