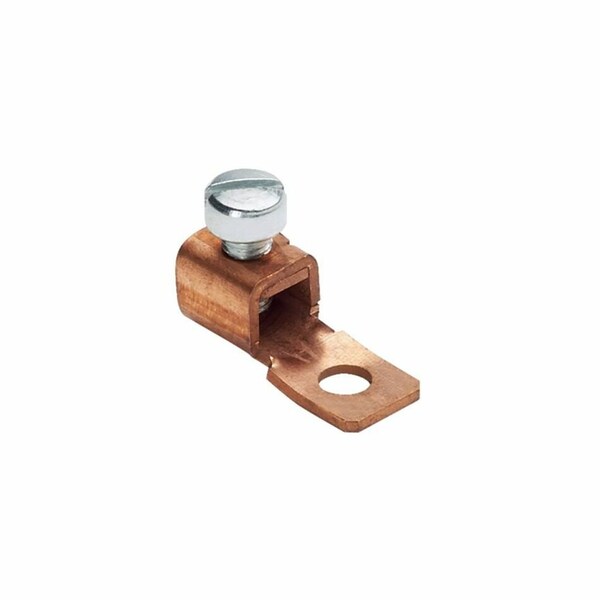

Conector mecánico de cobre, 1 agujero, 1 barril.
| Overall Length | 1.08 in |
|---|---|
| Height | 0.4 in |
| Product Type | Mechanical Connectors |
| Stud Hole Size (mm) | 4.76 |
| Tongue Width (mm) | 9.7 |
| Maximum Voltage (V) | 600 |
| Tongue Thickness (mm) | 1.3 |
| Minimum Copper Conductor Size (AWG STR) | 14 |
| Overall Height (In.) | 0.4 |
| Barrel Length (mm) | 8.5 |
| Overall Height (mm) | 9.9 |
| Tongue Type | Fixed Tongue |
| Barrel Length (In.) | 0.33 |
| Base Material | Copper |
| Overall Length (In.) | 1.08 |
| Tongue Width (In.) | 0.38 |
| Slotted Screw | Yes |
| Stud Hole Size (In.) | 45,001 |
| Tongue Thickness (In.) | 0.05 |
| Maximum Copper Conductor Size (AWG STR) | 6 |
| UL Temperature Rating (°C) | 90 |
| Tongue Angle | Straight |
| Standards Met | cULus listed up to 600V and temperature rated to 90 degrees C |
| Barrel Type | Single Barrel |
| Number of Holes | 1 |
| Overall Length (mm) | 27.4 |
| Product Material | Copper |
| Connector Plating | Tin |
| Product Name | Terminal Connector |
| Connector Details | 1 x Barrel Plug |
| Product Class | Wire Termination |
| Package Quantity | 1 |
