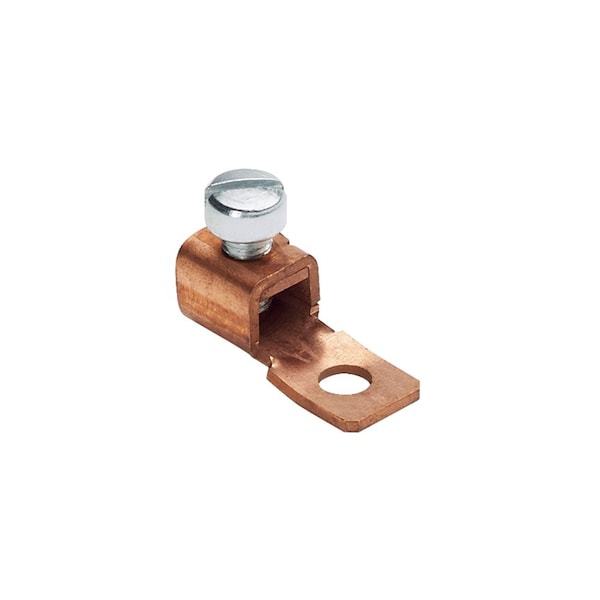

Copper Mechanical Lug, 1 Hole, 1 Barrel,
| Stud Size | 44565 |
|---|---|
| Material | Copper |
| Material of Construction | Copper |
| No. of Holes | 1 |
| Max. Voltage | 600 |
| Type | Mechanical Connectors-Lugs |
| Overall Length | 1.28 in |
| Overall Height | 0.5 |
| Height | 1/2 in |
| Overall Length (In.) | 1.28 |
| Tongue Width (mm) | 12.7 |
| Product Type | Connector |
| UL Temperature Rating (°C) | 90 |
| Overall Height (In.) | 1/2 |
| Base Material | Copper |
| Tongue Width (In.) | 1/2 |
| Overall Length (mm) | 32.5 |
| Finish/Coating | Tin-Plated |
| Tongue Thickness (In.) | 0.06 |
| Maximum Voltage (V) | 600 |
| Tongue Thickness (mm) | 1.5 |
| Barrel Type | Single Barrel |
| Number of Holes | 1 |
| Tongue Type | Fixed Tongue |
| Overall Height (mm) | 12.7 |
| Product Class | Wire Termination |
| Package Quantity | 1 |
