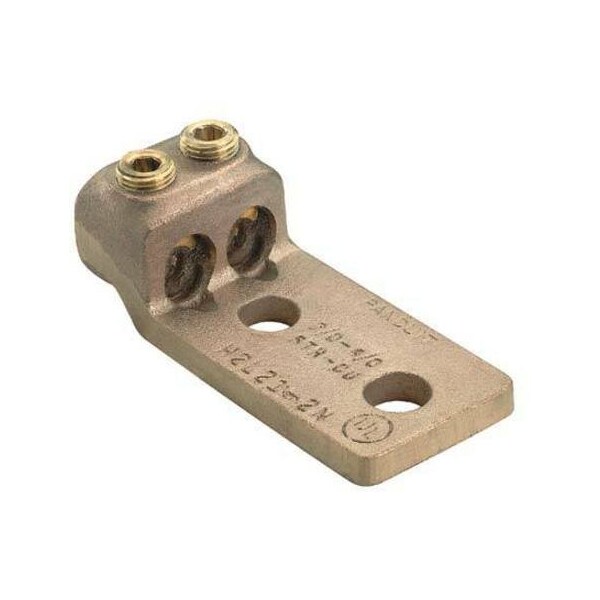

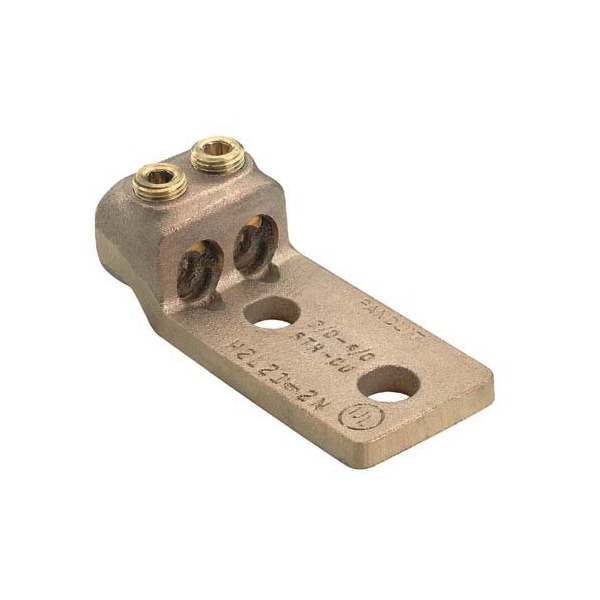

Terminal mecánico de cobre, de 2 orificios, 2 barriles, 2/0 STR - 4/0, H2L21-2N-2.
| Material | Cast Copper |
|---|---|
| Height | 1.3 in |
| Overall Length | 4.19 in |
| Features | Corrosion Resistant, Halogen Free |
| Conductor Material | Copper |
| Height (In.) | 1.34 |
| Length (mm) | 106.4 |
| Tongue Thickness | 0.31 |
| Tightening Torque (In-Lbs) | 250 |
| Length (In.) | 4.19 |
| Stud Hole Size (In.) | 1 to 2 |
| Stud Hole Spacing (In.) | 1.75 |
| Tongue Width (In.) | 1.88 |
| Copper Conductor Size Range | 2/0 STR - 4/0 STR |
| Height (mm) | 34 |
| Tongue Length | 3 |
| Wire Range (mm²) | 70 - 120 |
| Hex Key Size (In.) | 45185 |
| Tongue Width (mm) | 47.8 |
| Connector Details | 1 x Barrel Plug |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Product Type | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
