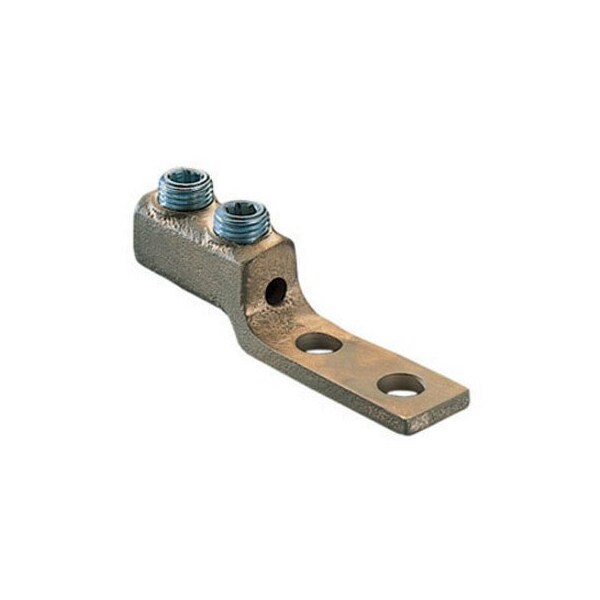

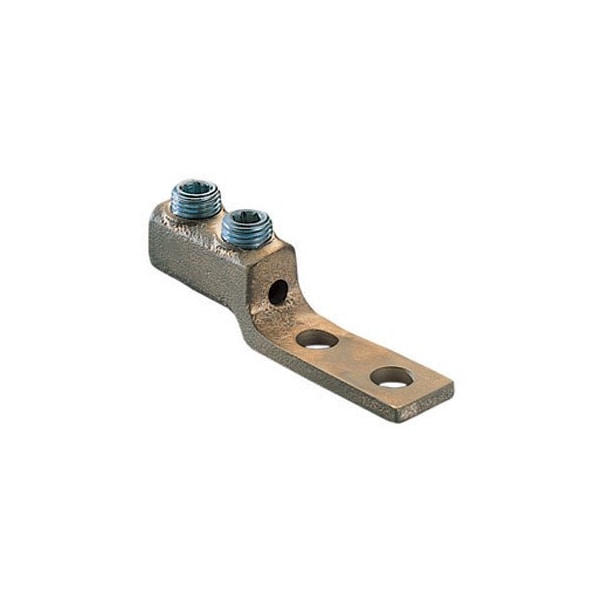

Terminal mecánica de cobre, con 2 agujeros, Tándem, NEMA, 2/0 STR -, HHL21-2N-5.
| Width | 1.3 in |
|---|---|
| Overall Length | 5.63 in |
| Height | 1.4 in |
| Features | Corrosion Resistant |
| Tongue Width (In.) | 1-1/2 |
| Product Type | Mechanical Connectors |
| UL Temperature Rating (°C) | 90 |
| Tongue Thickness (In.) | 0.25 |
| Overall Length (In.) | 5.63 |
| Tongue Type | Straight Tongue |
| Stud Hole Size (In.) | 1 to 2 |
| Overall Height (In.) | 1.4 |
| Tongue Length (In.) | 3 |
| Base Material | Cast Copper |
| Stud Hole Spacing (In.) | 1.75 |
| Tongue Width (mm) | 38.1 |
| Number of Holes | 2 |
| Overall Length (mm) | 143 |
| Overall Height (mm) | 34.8 |
| Connector Details | 1 x Terminal |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Package Quantity | 1 |
