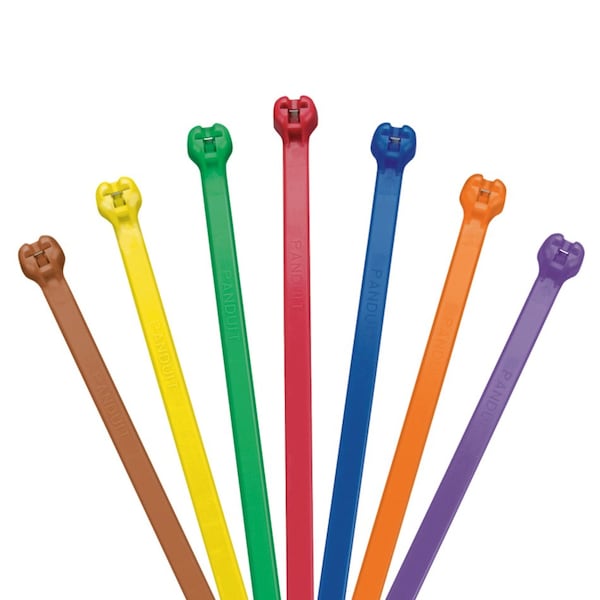

Ctie, Mbarb, 15.1l, Std, Nyl, Or, PK1000
| Item | Ctie,Mbarb,15.1l,Std,Nyl,Or,PK1000 |
|---|---|
| Length | 15.1 |
| Width | 0.32 in |
| Max. Bundle Dia. | 4 in |
| Color | Orange |
| Material | Nylon 6.6 |
| Tensile Strength | 50 lb |
| Basic Material | Nylon |
| Temp. Range | -60 to 85 deg C |
| Tensile Strength - Cable Tie | 50 lb |
| Standards | UL 62275, CSA-C22.2 No. 62275, Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H, 89/60111 (E3), 11130200, QPL-AS23190 |
| Thickness | 50 mil |
| Application | General Purpose |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, STS2, STH2 |
| Overall Length | 15.1 in |
| Environment | Plenum |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Bundle Diameter (In.) | 4 |
| Product Type | Cable Tie |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Maximum Bundle Diameter (mm) | 101.6 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Sub Brand | Dome-Top® |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -76 |
| Overall Length (In.) | 15.1 |
| Minimum Installation Temperature (°F) | -4 |
| Body Width (mm) | 4.7 |
| Body Width (In.) | 0.185 |
| Overall Length (mm) | 384 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H, 89/60111 (E3), 11130200, QPL-AS23190, RoHS Compliant |
| Minimum Bundle Diameter (mm) | 1.5 |
| Body Thickness (mm) | 1.3 |
| Body Thickness (In.) | 0.052 |
| Minimum Loop Tensile Strength | 50 lb |
| Product Line | Dome-Top |
| Cable Manager Type | Cable Tie |
| Product Color | Orange |
| Product Material | Nylon 6.6 |
| Product Name | Dome-Top Cable Tie |
| Max Operating Temperature | 85 degrees celsius |
| Product Class | Management, Protection, Wire Routing |
| Min Operating Temperature | -60 degrees celsius |
| Package Quantity | 1000 |
