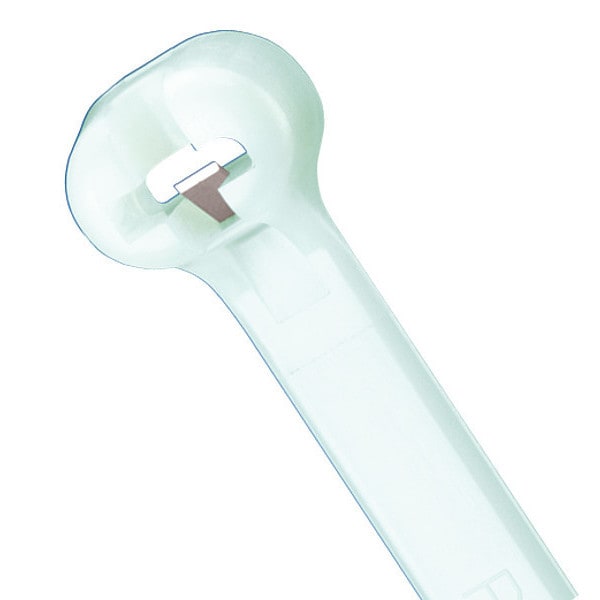

Ctie, Mbarb, 4l, Mini, Hs, Nat, PK1000
| Item | Ctie,Mbarb,4l,Mini,Hs,Nat,PK1000 |
|---|---|
| Length | 4 |
| Width | 0.095 in |
| Max. Bundle Dia. | 0.9 in |
| Color | Natural |
| Material | Nylon 6.6 |
| Tensile Strength | 18 lb |
| Indoor/Outdoor | Indoor |
| Temp. Range | -60 to 115 deg C |
| Thickness | 0.036 in |
| Resists | Heat |
| Standards | CSA Certified, UL 62275, CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190 |
| Application | High Temperature |
| Minimum Installation Temperature (°C) | -20 |
| Body Width (In.) | 0.095 |
| Sub Brand | Dome-Top® |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant |
| Body Thickness (In.) | 0.036 |
| Body Thickness (mm) | 0.9 |
| Minimum Operating Temperature (°C) | -60 |
| Maximum Bundle Diameter (In.) | 0.9 |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Maximum Bundle Diameter (mm) | 22.9 |
| Minimum Installation Temperature (°F) | -4 |
| Overall Length (mm) | 102 |
| Overall Length (In.) | 4 |
| Resistance Properties | Heat Resistant |
| Maximum Operating Temperature (°F) | 239 |
| Maximum Operating Temperature (°C) | 115 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Product Type | Cable Tie |
| Minimum Operating Temperature (°F) | -76 |
| Body Width (mm) | 2.4 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Environment | Indoor |
| Product Color | Natural |
| Cable Manager Type | Cable Tie |
| Product Line | Dome-Top Barb Ty |
| Depth | 4 in |
| Additional Information | Cross Section: Miniature |
| Product Material | Nylon |
| Product Name | Dome-Top BT Series Barb Ty Heat Stabilized Cable Tie |
| Min Operating Temperature | -60 degrees celsius |
| Overall Length | 4 in |
| Product Class | Management, Protection, Wire Routing |
| Package Quantity | 1000 |
