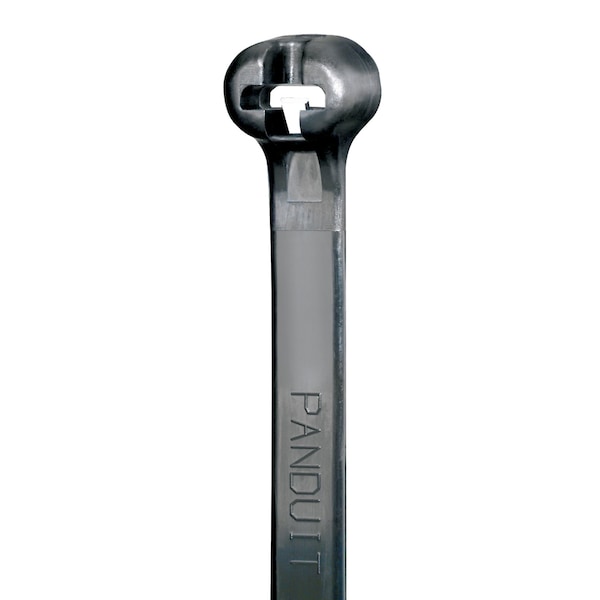

Ctie, Mbarb, 7.9l, Mini, Hs, Bl, PK1000
| Item | Ctie,Mbarb,7.9l,Mini,Hs,Bl,PK1000 |
|---|---|
| Length | 7.9 |
| Width | 0.095 in |
| Max. Bundle Dia. | 2 in |
| Color | Black |
| Material | Nylon 6.6 |
| Tensile Strength | 18 lb |
| Indoor/Outdoor | Indoor |
| Tensile Strength - Cable Tie | 18 lb |
| Thickness | 40 mil |
| Resists | Heat |
| Standards | CSA Certified, UL 62275, CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190 |
| Temp. Range | -60 to 115 deg C |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Overall Length | 7.9 in |
| Minimum Operating Temperature (°F) | -76 |
| Resistance Properties | Heat Resistant |
| Maximum Operating Temperature (°F) | 239 |
| Overall Length (mm) | 201 |
| Maximum Operating Temperature (°C) | 115 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Operating Temperature (°C) | -60 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant |
| Minimum Installation Temperature (°C) | -20 |
| Environment | Indoor |
| Sub Brand | Dome-Top® |
| Maximum Bundle Diameter (In.) | 2 |
| Minimum Installation Temperature (°F) | -4 |
| Body Thickness (In.) | 0.046 |
| Maximum Bundle Diameter (mm) | 51 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Product Type | Cable Tie |
| Body Width (mm) | 2.4 |
| Body Thickness (mm) | 1.2 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Overall Length (In.) | 7.9 |
| Body Width (In.) | 0.095 |
| Cable Manager Type | Tie |
| Product Color | Black |
| Product Line | Dome-Top |
| Minimum Loop Tensile Strength | 18 lb |
| Product Name | Dome-Top BT2M-M30 Cable Tie |
| Product Material | Nylon 6.6 |
| Max Operating Temperature | 115 degrees celsius |
| Min Operating Temperature | -60 degrees celsius |
| Product Class | Cable & Wire Ties, Straps |
| Package Quantity | 1000 |
