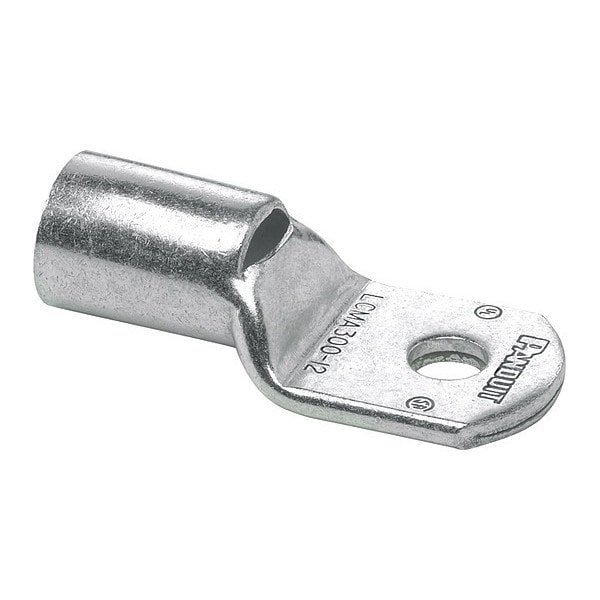

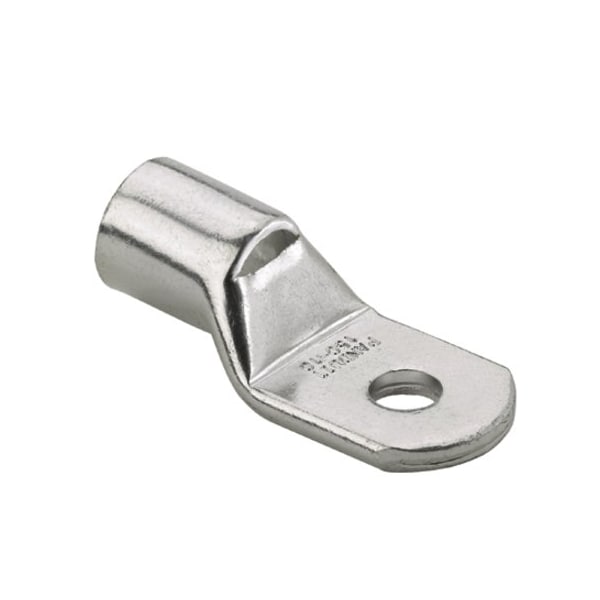

Tapa cuadrada de 70 mm, perno M10, paquete de 50 unidades
| Cable Size | 70mm sq. |
|---|---|
| Connector Type | Standard Barrel |
| Width | 20.8 mm |
| Material | Tin-Plated Copper |
| Length | 53.5 mm |
| Item | Lug Compression Connector-Metric |
| Connection Type | 1 x Terminal |
| Connection Material | Tin |
| Features | Corrosion Resistant |
| Overall Length | 53.5 mm |
| Standards Met | Meets EN 61238-1:2003/IEC 61238-1:2003 Class B WITH Class 2r Wire |
| Stud Hole Size (In.) | 10 |
| Maximum Voltage (kV) | 35 |
| Barrel Length (mm) | 23.3 |
| Finish/Coating | Tin-Plated |
| Tongue Angle | Straight |
| Base Material | Copper |
| Tongue Width (mm) | 20.8 |
| Overall Length (mm) | 53.5 |
| UL Temperature Rating (°C) | 90 |
| Product Type | Copper Compression Lugs, Compression Metric Lugs, Copper Metric Lugs |
| Wire Strip Length (mm) | 24.8 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Tongue Type | Standard |
| Tongue Thickness (mm) | 2.9 |
| Connector Details | 1 x Terminal |
| Product Name | Terminal Connector |
| Product Material | Copper |
| Connector Plating | Tin |
| Product Class | Lugs |
| Package Quantity | 1 |
