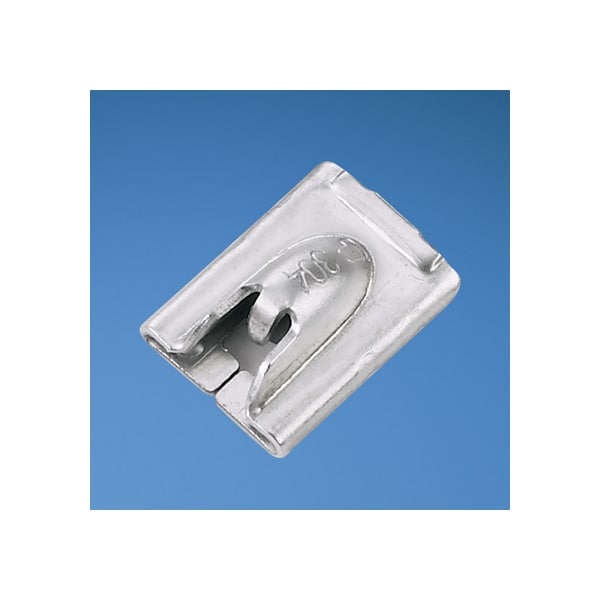

Custom Banding Tie Head, 316 SS, Standar
| Color | Natural |
|---|---|
| Material | 316 Stainless Steel |
| Width | 1/4 in |
| Application | Corrosive Environment |
| Overall Length | 0.42 in |
| For Use With | GS4MT, PPTMT, ST2MT, ST3MT, HTMT and MBS-MR316,MBS-TLR316 banding |
| Minimum Operating Temperature (°C) | -60 |
| Maximum Operating Temperature (°C) | 538 |
| Body Thickness (In.) | 0.16 |
| Maximum Operating Temperature (°F) | 1,000 |
| Body Width (In.) | 1/4 |
| Overall Length (In.) | 0.42 |
| Minimum Installation Temperature (°F) | -76 |
| Overall Length (mm) | 10.8 |
| Minimum Operating Temperature (°F) | -76 |
| Resistance Properties | UV-Resistant |
| Product Type | Custom Length Banding Head |
| Minimum Loop Tensile Strength (lb) | 100 |
| Minimum Loop Tensile Strength (N) | 445 |
| Body Thickness (mm) | 4.064 |
| Minimum Installation Temperature (°C) | -60 |
| Body Width (mm) | 6.4 |
| Environment | Harsh |
| Max Operating Temperature | 538 degrees celsius |
| Product Class | Wire Routing, Management & Protection |
| Min Operating Temperature | -60 degrees celsius |
| Package Quantity | 100 |
