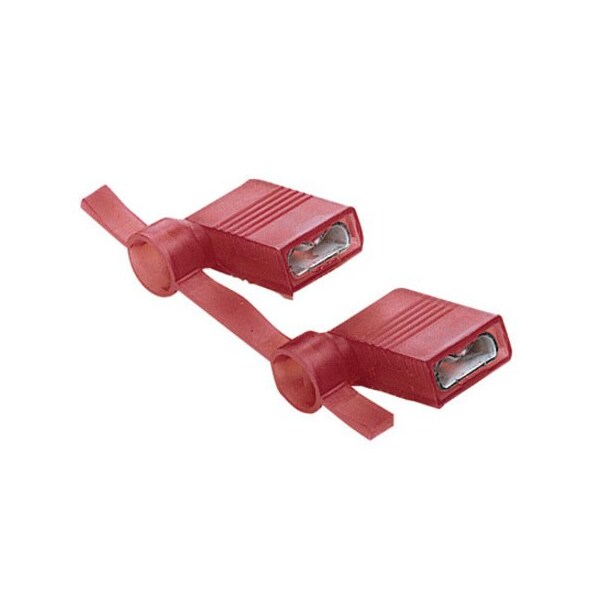

Desconecte, Engarce, Rápido, Rojo, .205x.02", calibre 22-18, paquete de 1500.
| Wire Range |
22 to 18 AWG |
| Insulation Type |
Nylon |
| Insulation Color |
Red |
| Item |
Dis,F,Ra,Rdny,.205x.02",22-18 Awg,PK1500 |
| Max. Temp. |
221 deg F |
| Terminal Type |
Female Disconnect-Right Angle |
| Connection Material |
Brass |
| Seam |
Funnel |
| Max. Voltage |
600 V |
| Standards |
UL 310, CSA 22.2 No.153 |
| Features |
Molded, Right-angled Connector, Flame Retardant |
| Overall Length |
0.6 in |
| Finish |
Tinned |
| Depth |
0.6 in |
| Height |
0.21 in |
| Width |
0.4 in |
| Insulation Dia |
0.18 in |
| Terminal Orientation |
Right Angle |
| Insulation Material |
Nylon |
| Connector Details |
1 x (Quick Disconnect) |
| Product Material |
Brass |
| Product Type |
Terminal Connector |
| Product Color |
Red |
| Contact Plating |
Tin |
| Product Name |
Terminal Connector |
| Barrel Type |
Seam |
| Color Coding |
Red |
| Product Class |
Disconnects |
| Package Quantity |
1500 |
