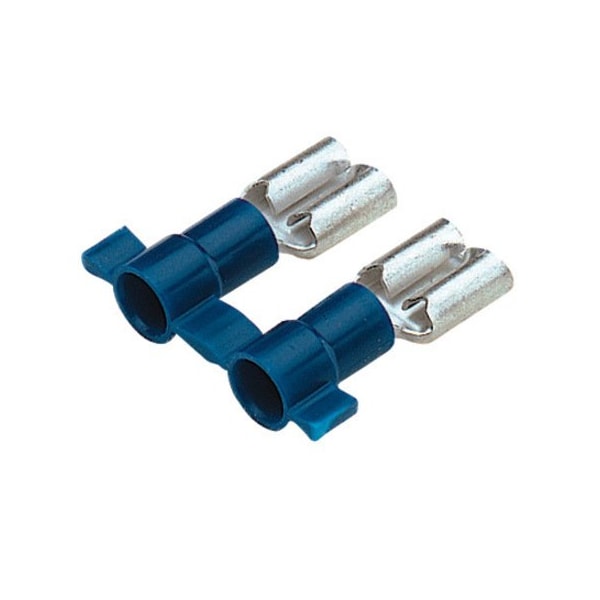

Disc, F, Blvn, .25x.032", 16-14 Awg, PK3000
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Insulation Color | Blue |
| Item | Disc,F,Blvn,.25x.032",16-14 Awg,PK3000 |
| Connection Material | Brass |
| Features | Flame Retardant, Molded |
| Max. Temp. | 221 deg F |
| Overall Length | 0.83 in |
| Seam | Funnel |
| Max. Voltage | 600 V |
| Terminal Type | Female Disconnect |
| Standards | UL 310, CSA 22.2 No.153 |
| Height | 0.83 in |
| Finish | Tinned |
| Width | 0.3 in |
| Terminal Orientation | Straight |
| Insulation Dia | 0.17 in |
| Product Type | Terminal Connector |
| Insulation Material | Vinyl |
| Product Color | Blue |
| Connector Details | 1 x (Quick Disconnect) |
| Contact Plating | Tin |
| Product Name | Terminal Connector |
| Max Operating Temperature | 105 degrees celsius |
| Product Class | Disconnects |
| Color Coding | Blue |
| Barrel Type | Seam |
| Package Quantity | 3000 |
