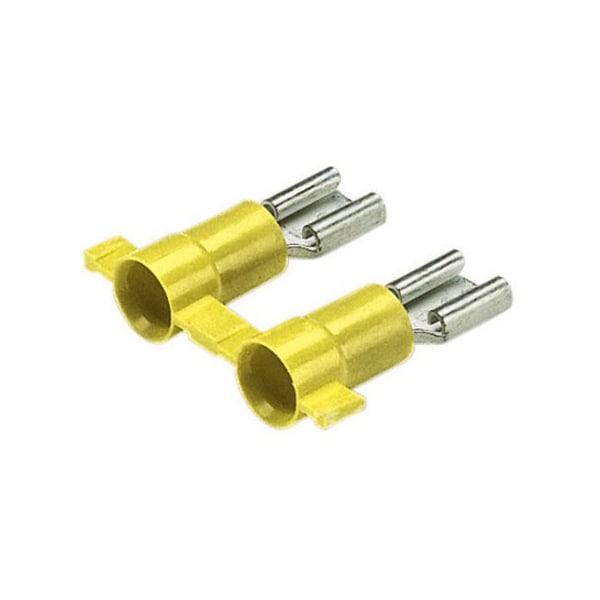

Disco, F, Com.250x.032", 12-10 Awg, Paquete de 2000unidadades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Insulation Color | Yellow |
| Item | Disc,F,Com.250x.032",12-10 Awg,PK2000 |
| Overall Length | 0.95 in |
| Max. Temp. | 302 deg F |
| Terminal Type | Female Disconnect-Compressor |
| Connection Material | Brass |
| Features | Flame Retardant, Molded |
| Max. Voltage | 600 V |
| Standards | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Seam | Standard, Butted |
| Finish | Tinned |
| Height | 0.12 in |
| Width | 0.3 in |
| Terminal Orientation | Straight |
| Insulation Dia | 0.23 in |
| Contact Plating | Tin |
| Insulation Material | Vinyl |
| Connector Details | 1 x (Quick Disconnect) |
| Product Color | Yellow |
| Product Type | Terminal Connector |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Color Coding | Yellow |
| Barrel Type | Seam |
| Max Operating Temperature | 150 degrees celsius |
| Package Quantity | 2000 |
