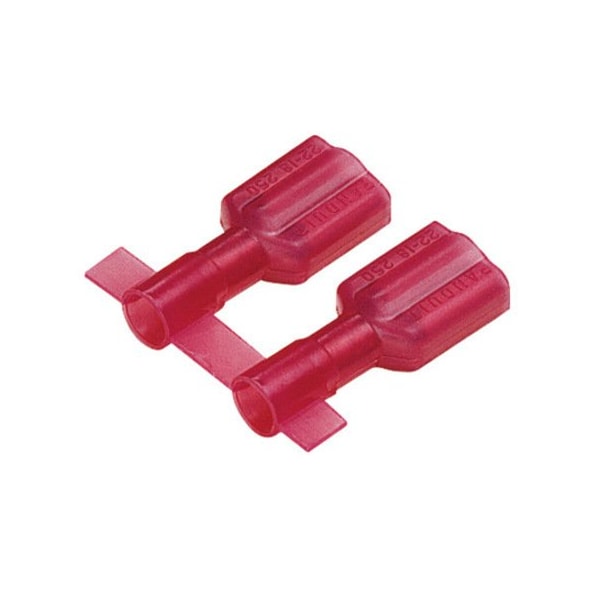

Disco, F, Rdny, .187x.032", 22-18 Awg, Paquete de 3000
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Insulation Color | Red |
| Item | Disc,F,Rdny,.187x.032",22-18 Awg,PK3000 |
| Standards | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Connection Material | Brass |
| Max. Temp. | 221 deg F |
| Seam | Butted |
| Terminal Type | Female Disconnect |
| Max. Voltage | 600 V |
| Overall Length | 0.78 in |
| Features | Funnel Entry |
| Height | 0.18 in |
| Width | 0.3 in |
| Finish | Tinned |
| Insulation Dia | 0.14 in |
| Terminal Orientation | Straight |
| Product Color | Red |
| Connector Details | 1 x (Quick Disconnect) |
| Product Type | Terminal Connector |
| Product Name | Terminal Connector |
| Contact Plating | Tin |
| Insulation Material | Nylon |
| Barrel Type | Seam |
| Product Class | Disconnects |
| Max Operating Temperature | 105 degrees celsius |
| Color Coding | Red |
| Package Quantity | 3000 |
