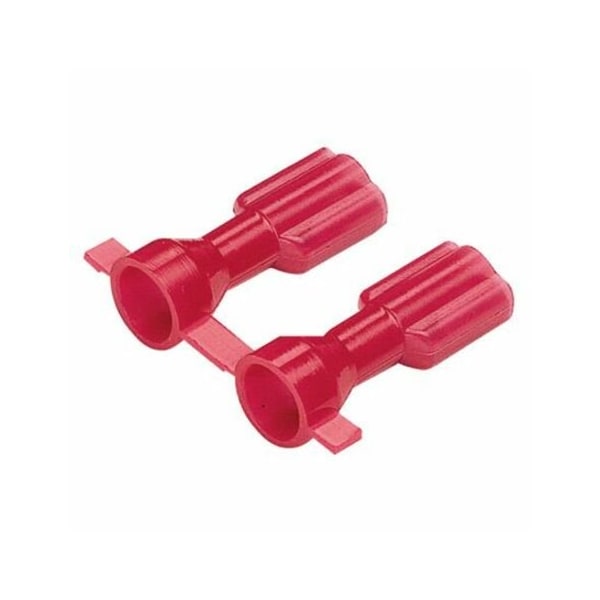

Disc, F, Rdny, Xp, .205x.02", 22-18Awg, PK2000
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Nylon |
| Insulation Color | Red |
| Item | Disc,F,Rdny,Xp,.205x.02",22-18Awg,PK2000 |
| Overall Length | 0.87 in |
| Connection Material | Brass |
| Max. Temp. | 221 deg F |
| Seam | Expanded Entry |
| Features | Flame Retardant, Molded |
| Max. Voltage | 600 V |
| Terminal Type | Female Disconnect |
| Standards | UL 310, CSA 22.2 No.153 |
| Width | 0.3 in |
| Finish | Tinned |
| Height | 0.22 in |
| Insulation Dia | 0.21 in |
| Terminal Orientation | Straight |
| Contact Plating | Tin |
| Product Type | Terminal Connector |
| Product Name | Terminal Connector |
| Connector Details | 1 x (Quick Disconnect) |
| Insulation Material | Nylon |
| Product Color | Red |
| Color Coding | Red |
| Max Operating Temperature | 105 degrees celsius |
| Barrel Type | Seam |
| Product Class | Wire Termination |
| Package Quantity | 2000 |
