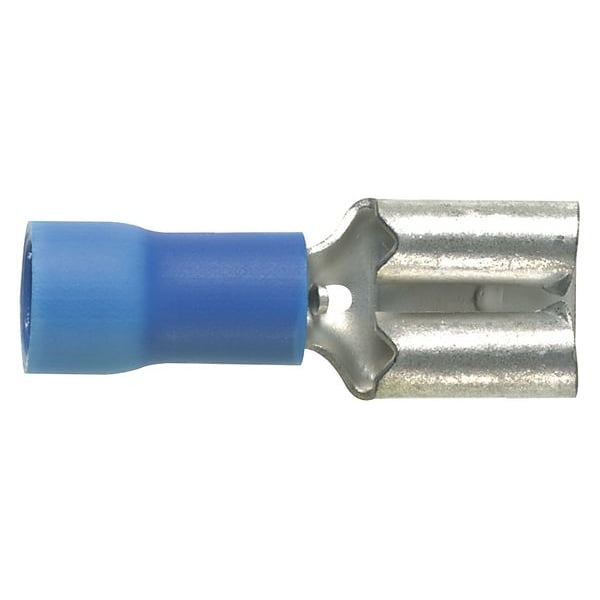

Desconexión hembra, 0.81 pulgadas, paquete de 100.
| Item | Female Disconnect |
|---|---|
| Insulation | Full |
| For Use With | CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525) |
| Color Code | Blue |
| Insulation Type | Vinyl |
| Wire Range | 16 to 14 AWG |
| Connection Type | Crimp |
| Tab Size | 0.250 in x 0.032 in |
| Overall Length | 0.81 in |
| Seam | Butted |
| Connector Type | Quick Disconnect |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Standards | CSA22.2 No. 153, UL 310 Recognized |
| Connection Material | Tin-Plated Brass |
| Features | Flame Retardant |
| Width | 0.3 in |
| Wire Strip Length (mm) | 6.3 |
| Maximum Wire Insulation Diameter (In.) | 0.17 |
| Disconnect Type | Female Disconnect |
| Finish/Coating | Tin-Plated |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Tab Size (mm) | 6.3 x 0.8 |
| Overall Width (In.) | 0.29 |
| Tab Size (In.) | 0.25 x 0.032 |
| Tongue Angle | Straight |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Base Material | Brass |
| Flammability Rating | UL94V-0 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Product Type | Disconnect |
| Maximum Wire Size (AWG) | #14 |
| Maximum Voltage (V) | 600 |
| Overall Length (In.) | 0.81 |
| Overall Width (mm) | 7.4 |
| Wire Strip Length (In.) | 44,930 |
| Insulation Material | Vinyl |
| Overall Height (mm) | 3 |
| Maximum Wire Insulation Diameter (mm) | 4.3 |
| Barrel Type | Funnel |
| Maximum Voltage (kV) | 0.6 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Operating Temperature (°C) | 105 |
| Minimum Wire Size (AWG) | #16 |
| Overall Height (In.) | 0.12 |
| Overall Length (mm) | 20.6 |
| Connector Details | 1 x (Quick Disconnect) |
| Product Color | Blue |
| Product Name | Terminal Connector |
| Contact Plating | Tin |
| Environmentally Friendly | Yes |
| Packaging Type | Bottle |
| Sub Brand | Pan-Term® |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Package Quantity | 100 |
