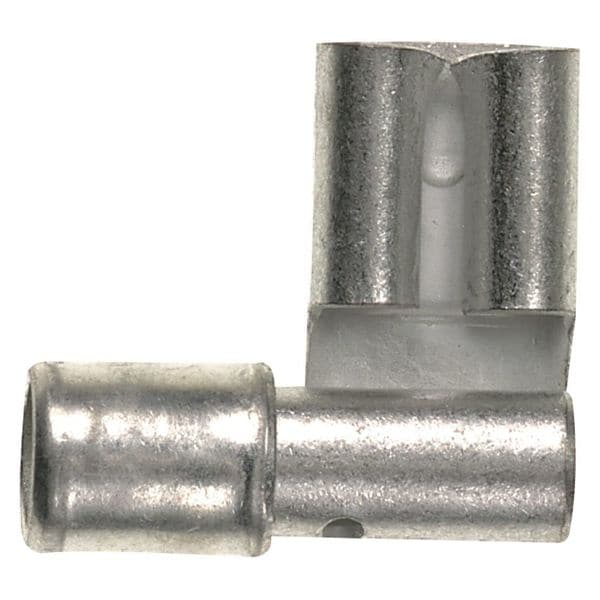

Desconexión hembra, 12-10AWG, paquete de 50
| Item | Female Disconnect,12-10AWG,PK50 |
|---|---|
| For Use With | CT-100, CT-1570, CT-1701, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570) |
| Overall Length | 0.61 in |
| Features | Right-angled Connector |
| Width | 0.3 in |
| Finish | Tinned |
| Overall Depth (mm) | 14.5 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Wire Size (AWG) | #12 |
| Tongue Angle | Right Angle |
| Wire Strip Length (In.) | 11,933 |
| Insulation Material | Non-insulated |
| Overall Length (In.) | 0.61 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Overall Height (mm) | 14.5 |
| Maximum Voltage (V) | 600 |
| Overall Length (mm) | 15.5 |
| Barrel Type | Standard |
| Base Material | Brass |
| Maximum Voltage (kV) | 0.6 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Tab Size (In.) | 0.25 x 0.032 |
| Overall Depth (In.) | 0.57 |
| Finish/Coating | Tin-Plated |
| Disconnect Type | Female Disconnect |
| Overall Thickness (In.) | 0.18 |
| Maximum Operating Temperature (°F) | 302 |
| Tab Size (mm) | 6.3 x 0.8 |
| Overall Height (In.) | 0.57 |
| Overall Width (In.) | 0.3 |
| Overall Thickness (mm) | 0.5 |
| Wire Strip Length (mm) | 7.1 |
| Maximum Wire Size (AWG) | #10 |
| Product Type | Disconnect |
| Overall Width (mm) | 7.6 |
| Product Color | Metallic |
| Product Name | Terminal Connector |
| Product Material | Brass |
| Connector Details | 1 x (Quick Disconnect) |
| Contact Plating | Tin |
| Depth | 0.57 in |
| Max Operating Temperature | 150 degrees celsius |
| Product Class | Disconnects |
| Package Quantity | 50 |
