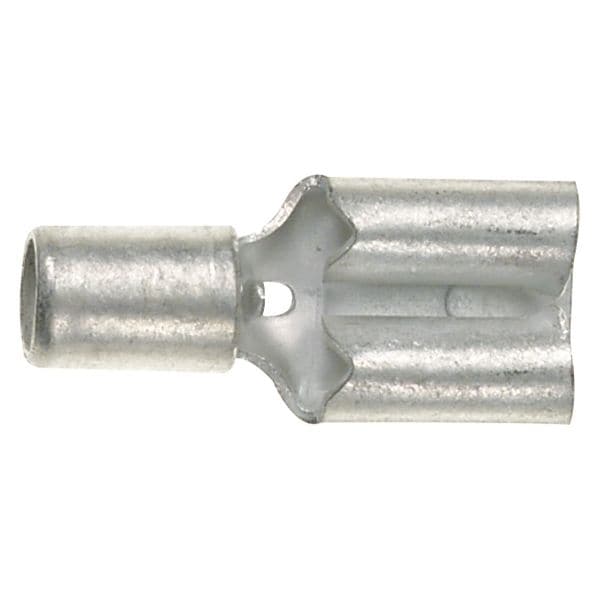

Desconexión hembra, desnuda, calibre 12-10 AWG, paquete de 50
| Item | Female Disconnect |
|---|---|
| Insulation | None |
| For Use With | CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570) |
| Insulation Color | Bare |
| Insulation Type | Non-Insulated |
| Wire Range | 12 to 10 AWG |
| Connection Type | Crimp |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 0.72 in |
| Seam | Sleeved Barrel |
| Connector Type | Quick Disconnect |
| Max. Temp. | 302 deg F |
| Max. Voltage | 2,000 V |
| Standards | CSA Certified LR31212, UL Listed 20H3 E78522, UL Recognized |
| Connection Material | Tin-Plated Brass |
| Barrel Inside Dia. | 0.12 in |
| Width | 0.3 in |
| Special Features | Barrel of Terminal Internally Beveled to Provide Quick and Easy Wire Insertion, Disconnect can be Inserted and Removed From the Male Tab Without the Use of Tools for Lower Installed Cost, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Internal Wire Stop Assures Proper Length of Insertion Into Terminal Barrel, Providing a Higher Quality Connection, Sleeved Barrel Helps to Facilitate High Mechanical and Electrical Performance When Crimping, Vibration Resistant |
| Minimum Wire Size | 12 AWG |
| Terminal Type | Socket |
| Insulation Material | None |
| Contact Material | Brass |
| RoHS Compliant | Yes |
| Strip Length | 1/4 in |
| Contact Finish | Tin |
| Minimum Operating Temperature | -60 deg F |
| Barrel Inside Diameter | 0.12 in |
| Barrel Style | Sleeved Barrel |
| Seam Style | Sleeved Barrel |
| Insulation Coverage | None |
| Tab Width | 1/4 in |
| Barrel Size | Standard |
| Tab Thickness | 0.032 in |
| Maximum Operating Temperature | 302 deg F |
| Maximum Wire Size | 10 AWG |
| Maximum Voltage | 2,000 V |
| Termination Style | Crimp |
| Overall Thickness (mm) | 0.4 |
| Overall Length (In.) | 0.72 |
| Maximum Voltage (kV) | 2 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Wire Strip Length (mm) | 7.1 |
| Overall Width (In.) | 0.3 |
| Base Material | Brass |
| Maximum Operating Temperature (°C) | 150 |
| Disconnect Type | Female Disconnect |
| Standards Met | UL Recognized, UL Listed 20H3 E78522; CSA Certified LR31212 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Overall Length (mm) | 18.3 |
| Overall Width (mm) | 7.6 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Wire Strip Length (In.) | 11,933 |
| Overall Thickness (In.) | 0.18 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Barrel Type | Standard |
| Tab Size (In.) | 0.25 x 0.032 |
| Maximum Voltage (V) | 2,000 |
| Finish/Coating | Tin-Plated |
| Maximum Metric Conductor Size (mm²) | 6 |
| Tab Size (mm) | 6.3 x 0.8 |
| Tongue Angle | Straight |
| Maximum Operating Temperature (°F) | 302 |
| Product Type | Disconnect |
| Contact Plating | Tin |
| Product Material | Brass |
| Product Color | Metallic |
| Product Name | Terminal Connector |
| Connector Details | 1 x (Quick Disconnect) |
| Environmentally Friendly | Yes |
| Sub Brand | Pan-Term® |
| Packaging Type | Bottle |
| Maximum Operating Temperature (°F) | 302 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Maximum Operating Temperature (°C) | 150 |
| Package Quantity | 50 |
