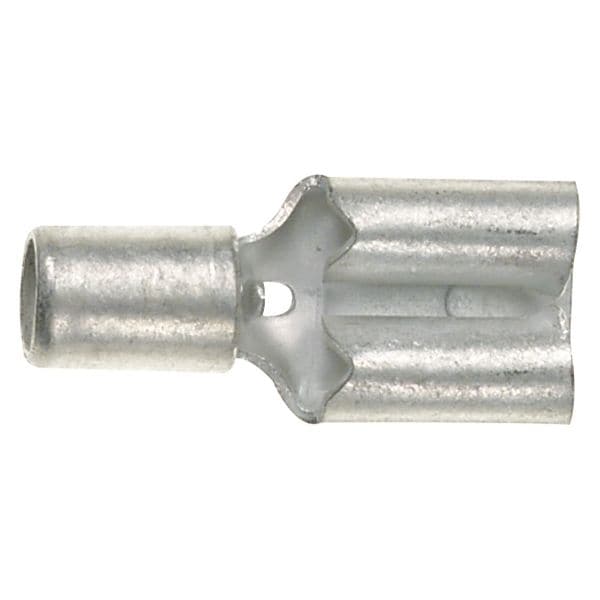

Desconexión hembra, desnuda, 12-10AWG, paquete de 500.
| Item | Female Disconnect |
|---|---|
| Insulation | None |
| Insulation Color | Bare |
| Insulation Type | Non-Insulated |
| Connection Type | Crimp |
| Wire Range | 12 to 10 AWG |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 0.72 in |
| Seam | Sleeved Barrel |
| Max. Voltage | 2,000 V |
| Max. Temp. | 302 deg F |
| Standards | CSA Certified LR31212, UL Listed 20H3 E78522, UL Recognized |
| Barrel Inside Dia. | 0.12 in |
| Connection Material | Tin-Plated Brass |
| Minimum Operating Temperature | -60 deg F |
| Contact Material | Brass |
| Barrel Inside Diameter | 0.12 in |
| RoHS Compliant | Yes |
| Maximum Wire Size | 10 AWG |
| Seam Style | Sleeved Barrel |
| Contact Finish | Tin |
| Maximum Voltage | 2,000 V |
| Barrel Size | Standard |
| Tab Thickness | 0.032 in |
| Insulation Material | None |
| Tab Width | 1/4 in |
| Terminal Type | Socket |
| Maximum Operating Temperature | 302 deg F |
| Special Features | Barrel of Terminal Internally Beveled to Provide Quick and Easy Wire Insertion, Disconnect can be Inserted and Removed From the Male Tab Without the Use of Tools for Lower Installed Cost, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Internal Wire Stop Assures Proper Length of Insertion Into Terminal Barrel, Providing a Higher Quality Connection, Sleeved Barrel Helps to Facilitate High Mechanical and Electrical Performance When Crimping, Vibration Resistant |
| Strip Length | 1/4 in |
| Barrel Style | Sleeved Barrel |
| Minimum Wire Size | 12 AWG |
| Insulation Coverage | None |
| Termination Style | Crimp |
| Package Quantity | 500 |
