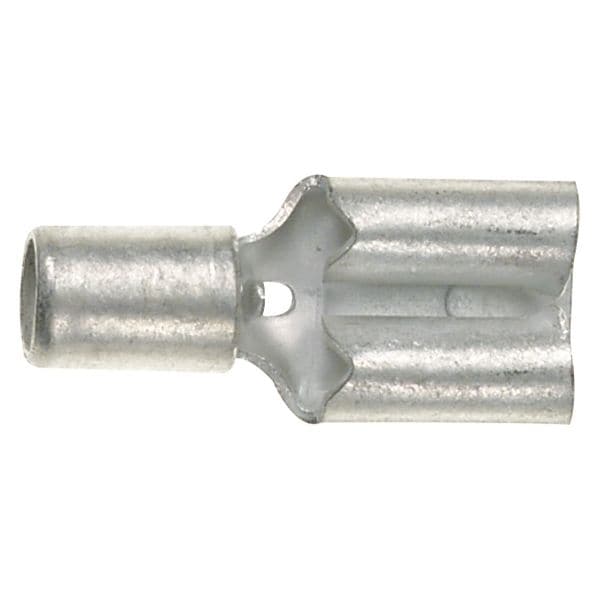

Desconexión hembra, sin aislante, calibre 16-14AWG, paquete con 100 piezas.
| Item | Female Disconnect |
|---|---|
| Insulation | None |
| For Use With | CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570) |
| Insulation Color | Bare |
| Insulation Type | Non-Insulated |
| Wire Range | 16 to 14 AWG |
| Connection Type | Crimp |
| Overall Length | 0.66 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Sleeved Barrel |
| Connector Type | Quick Disconnect |
| Max. Temp. | 302 deg F |
| Max. Voltage | 2,000 V |
| Barrel Inside Dia. | 0.085 in |
| Standards | CSA Certified LR31212, UL Listed 20H3 E78522, UL Recognized |
| Connection Material | Tin-Plated Brass |
| Width | 0.3 in |
| Maximum Operating Temperature | 302 deg F |
| Special Features | Barrel of Terminal Internally Beveled to Provide Quick and Easy Wire Insertion, Disconnect can be Inserted and Removed From the Male Tab Without the Use of Tools for Lower Installed Cost, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Internal Wire Stop Assures Proper Length of Insertion Into Terminal Barrel, Providing a Higher Quality Connection, Sleeved Barrel Helps to Facilitate High Mechanical and Electrical Performance When Crimping, Vibration Resistant |
| Barrel Size | Standard |
| Barrel Inside Diameter | 0.085 in |
| Minimum Operating Temperature | -60 deg F |
| Contact Finish | Tin |
| Tab Thickness | 0.032 in |
| Minimum Wire Size | 16 AWG |
| Maximum Voltage | 2,000 V |
| Maximum Wire Size | 14 AWG |
| Tab Width | 1/4 in |
| Strip Length | 1/4 in |
| Seam Style | Sleeved Barrel |
| Insulation Material | None |
| RoHS Compliant | Yes |
| Contact Material | Brass |
| Terminal Type | Socket |
| Termination Style | Crimp |
| Barrel Style | Sleeved Barrel |
| Insulation Coverage | None |
| Tongue Angle | Straight |
| Tab Size (In.) | 0.25 x 0.032 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 11,933 |
| Finish/Coating | Tin-Plated |
| Maximum Voltage (kV) | 2 |
| Base Material | Brass |
| Disconnect Type | Female Disconnect |
| Overall Thickness (In.) | 0.16 |
| Product Type | Disconnect |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Operating Temperature (°C) | 150 |
| Wire Strip Length (mm) | 7.1 |
| Overall Width (In.) | 0.3 |
| Overall Length (mm) | 16.8 |
| Overall Width (mm) | 7.6 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Barrel Type | Standard |
| Overall Thickness (mm) | 0.4 |
| Standards Met | UL Recognized, UL Listed 20H3 E78522; CSA Certified LR31212 |
| Minimum Wire Size (AWG) | #16 |
| Maximum Voltage (V) | 2,000 |
| Overall Length (In.) | 0.66 |
| Tab Size (mm) | 6.3 x 0.8 |
| Maximum Operating Temperature (°F) | 302 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Environmentally Friendly | Yes |
| Product Color | Metallic |
| Contact Plating | Tin |
| Product Name | Terminal Connector |
| Product Material | Brass |
| Connector Details | 1 x (Quick Disconnect) |
| Sub Brand | Pan-Term® |
| Packaging Type | Bottle |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Package Quantity | 100 |
