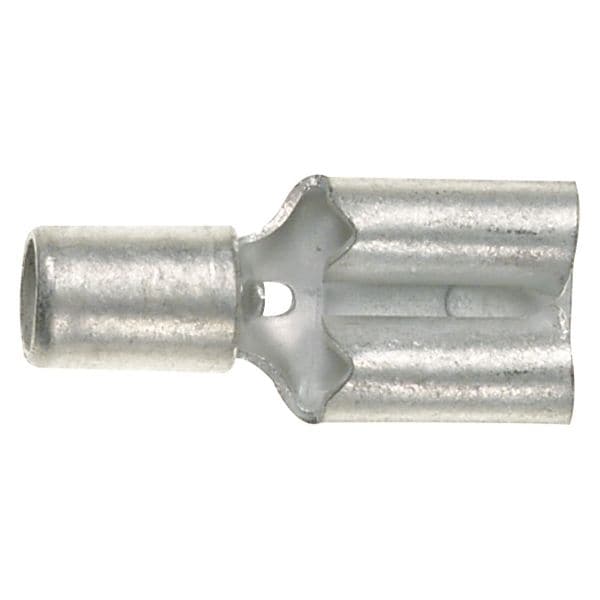

Desconexión hembra, desnuda, calibre 16-14 AWG, paquete de 1000.
| Item | Female Disconnect |
|---|---|
| Insulation | None |
| Insulation Color | Bare |
| Wire Range | 16 to 14 AWG |
| Connection Type | Crimp |
| Insulation Type | Non-Insulated |
| Overall Length | 0.66 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Sleeved Barrel |
| Max. Voltage | 2,000 V |
| Max. Temp. | 302 deg F |
| Barrel Inside Dia. | 0.085 in |
| Connection Material | Tin-Plated Brass |
| Standards | CSA Certified LR31212, UL Listed 20H3 E78522, UL Recognized |
| Special Features | Barrel of Terminal Internally Beveled to Provide Quick and Easy Wire Insertion, Disconnect can be Inserted and Removed From the Male Tab Without the Use of Tools for Lower Installed Cost, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Internal Wire Stop Assures Proper Length of Insertion Into Terminal Barrel, Providing a Higher Quality Connection, Sleeved Barrel Helps to Facilitate High Mechanical and Electrical Performance When Crimping, Vibration Resistant |
| Maximum Operating Temperature | 302 deg F |
| Tab Width | 1/4 in |
| Barrel Size | Standard |
| Terminal Type | Socket |
| Minimum Operating Temperature | -60 deg F |
| Insulation Coverage | None |
| Maximum Wire Size | 14 AWG |
| Strip Length | 1/4 in |
| Contact Finish | Tin |
| Maximum Voltage | 2,000 V |
| Barrel Style | Sleeved Barrel |
| Termination Style | Crimp |
| Minimum Wire Size | 16 AWG |
| Seam Style | Sleeved Barrel |
| Insulation Material | None |
| Tab Thickness | 0.032 in |
| RoHS Compliant | Yes |
| Contact Material | Brass |
| Barrel Inside Diameter | 0.085 in |
| Package Quantity | 1000 |
