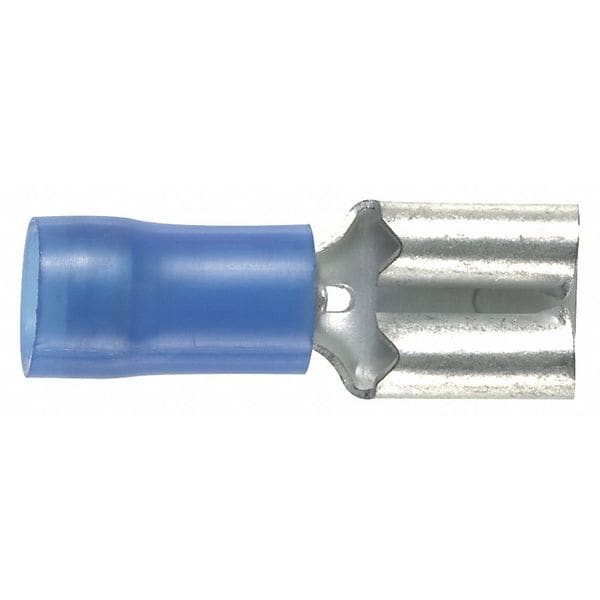

Desconexión hembra, azul, 16-14AWG, paquete de 100
| Item | Female Disconnect |
|---|---|
| Insulation | Partial |
| For Use With | CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Insulation Color | Blue |
| Color Code | Blue |
| Insulation Type | Nylon |
| Wire Range | 16 to 14 AWG |
| Connection Type | Crimp |
| Overall Length | 0.83 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Sleeved Barrel |
| Connector Type | Quick Disconnect |
| Max. Voltage | 300 V |
| Max. Temp. | 194 deg F |
| Barrel Inside Dia. | 0.101 in |
| Connection Material | Tin-Plated Brass |
| Standards | CSA 22.2 No.153, UL 310 |
| Features | Flame Retardant |
| Width | 0.3 in |
| RoHS Compliant | Yes |
| Special Features | Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Internal Wire Stop Assures Proper Length of Insertion into Terminal Barrel, Providing a Higher Quality Connection, Internal Wire Stop Assures Proper Wire Insertion Length for a Higher Quality Connection, Metal Insulation Grip Sleeve Crimps to Wire Insulation Providing Protection to the Crimp Joint for High Vibration Applications |
| Minimum Wire Size | 16 AWG |
| Strip Length | 5/16 in |
| Insulation Material | Nylon |
| UL 94 Flammability Rating | HB |
| Contact Material | Brass |
| Maximum Operating Temperature | 194 deg F |
| Seam Style | Sleeved Barrel |
| Minimum Operating Temperature | -60 deg F |
| Terminal Type | Socket |
| Tab Thickness | 0.032 in |
| Maximum Wire Size | 14 AWG |
| Termination Style | Crimp |
| Barrel Style | Funnel Entry |
| Barrel Inside Diameter | 0.101 in |
| Maximum Voltage | 300 V |
| Insulation Coverage | Partial Coverage |
| Tab Width | 1/4 in |
| Contact Finish | Tin |
| Overall Width (mm) | 7.4 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Wire Size (AWG) | #16 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Voltage (kV) | 0.3 |
| Overall Length (mm) | 21.1 |
| Overall Height (In.) | 0.12 |
| Overall Width (In.) | 0.29 |
| Flammability Rating | UL94-HB |
| Tab Size (mm) | 6.3 x 0.8 |
| Wire Strip Length (mm) | 7.1 |
| Product Type | Disconnect |
| Maximum Wire Size (AWG) | #14 |
| Maximum Operating Temperature (°F) | 194 |
| Base Material | Brass |
| Maximum Operating Temperature (°C) | 90 |
| Overall Length (In.) | 0.83 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Barrel Type | Funnel |
| Tab Size (In.) | 0.25 x 0.032 |
| Tongue Angle | Straight |
| Finish/Coating | Tin-Plated |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Wire Strip Length (In.) | 11,933 |
| Disconnect Type | Female Disconnect |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Overall Height (mm) | 3.1 |
| Maximum Voltage (V) | 300 |
| Connector Details | 1 x (Quick Disconnect) |
| Product Name | Terminal Connector |
| Contact Plating | Tin |
| Environmentally Friendly | Yes |
| Product Color | Blue |
| Sub Brand | Pan-Term® |
| Packaging Type | Bottle |
| Maximum Operating Temperature (°C) | 90 |
| Maximum Operating Temperature (°F) | 194 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Package Quantity | 100 |
