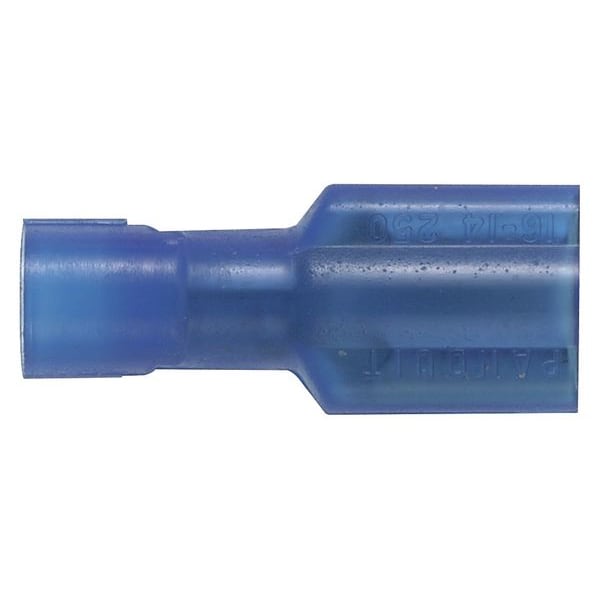

Female Disconnect, Blue, 16-14AWG, PK100
| Item | Female Disconnect |
|---|---|
| Insulation | Full |
| For Use With | CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525) |
| Insulation Color | Blue |
| Color Code | Blue |
| Wire Range | 16 to 14 AWG |
| Insulation Type | Nylon |
| Connection Type | Crimp |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 0.84 in |
| Seam | Butted |
| Connector Type | Terminal - Female |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Barrel Inside Dia. | 0.09 in |
| Standards | CSA 22.2 No.153, UL 310 |
| Connection Material | Tin-Plated Brass |
| Length | 0.8 in |
| Width | 0.4 in |
| Insulation Coverage | Full Coverage |
| Seam Style | Butted |
| Termination Style | Crimp |
| Contact Material | Brass |
| Strip Length | 5/16 in |
| Minimum Wire Size | 16 AWG |
| Insulation Material | Nylon |
| Barrel Style | Funnel Entry |
| Maximum Operating Temperature | 221 deg F |
| Tab Thickness | 0.032 in |
| Minimum Operating Temperature | -60 deg F |
| Barrel Inside Diameter | 0.09 in |
| Maximum Voltage | 600 V |
| UL 94 Flammability Rating | HB |
| Maximum Wire Size | 14 AWG |
| Contact Finish | Tin |
| Tab Width | 1/4 in |
| Terminal Type | Socket |
| RoHS Compliant | Yes |
| Special Features | Fully Insulated Design Provides Protection From Electrical Shorts, The Disconnect can be Inserted and Removed From the Male Tab Without the Use of Additional Tools, The Internal Wire Stop Assures Proper Wire Insertion Length Into the Terminal Barrel for a Higher Quality Connection, and the Funnel Entry Allows for Faster Wire Insertion and Lower Installed Cost |
| Tab Size (In.) | 0.25 x 0.032 |
| Overall Width (In.) | 0.35 |
| Barrel Type | Funnel |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Maximum Operating Temperature (°F) | 221 |
| Overall Height (mm) | 5.6 |
| Maximum Voltage (V) | 600 |
| Flammability Rating | UL94-HB |
| Tab Size (mm) | 6.3 x 0.8 |
| Finish/Coating | Tin-Plated |
| Overall Length (mm) | 21.3 |
| Wire Strip Length (mm) | 7.1 |
| Base Material | Brass |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Overall Height (In.) | 0.22 |
| Minimum Wire Size (AWG) | #16 |
| Tongue Angle | Straight |
| Overall Width (mm) | 8.9 |
| Wire Strip Length (In.) | 11,933 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Operating Temperature (°C) | 105 |
| Disconnect Type | Female Disconnect |
| Overall Length (In.) | 0.84 |
| Product Type | Disconnect |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Voltage (kV) | 0.6 |
| Product Color | Blue |
| Product Name | Terminal Connector |
| Connector Plating | Tin |
| Connector Details | 1 x (Terminal Female) |
| Diameter | 0.2 in |
| Product Material | Nylon |
| Environmentally Friendly | Yes |
| Packaging Type | Bottle |
| Sub Brand | Pan-Term® |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Operating Temperature (°F) | 221 |
| Package Quantity | 100 |
