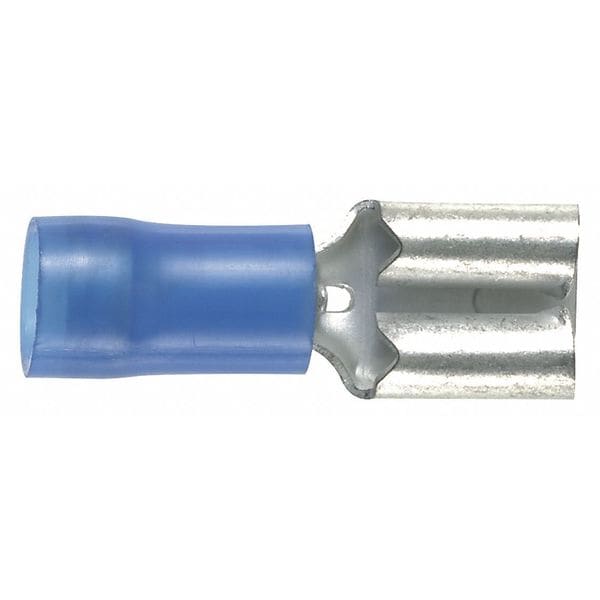

Desconexión hembra, azul, calibre 16-14AWG, paquete de 1000
| Item | Female Disconnect |
|---|---|
| Insulation | Partial |
| For Use With | CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Insulation Color | Blue |
| Color Code | Blue |
| Connection Type | Crimp |
| Insulation Type | Nylon |
| Wire Range | 16 to 14 AWG |
| Overall Length | 0.83 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Sleeved Barrel |
| Connector Type | Quick Disconnect |
| Max. Temp. | 194 deg F |
| Max. Voltage | 300 V |
| Standards | CSA 22.2 No.153, UL 310 |
| Connection Material | Tin-Plated Brass |
| Barrel Inside Dia. | 0.101 in |
| Features | Flame Retardant |
| Width | 0.3 in |
| Terminal Type | Socket |
| Strip Length | 5/16 in |
| Special Features | Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Disconnect can be Inserted and Removed From the Male Tab Without the Use of Tools for Lower Installed Cost, Internal Wire Stop Assures Proper Length of Insertion Into Terminal Barrel, Providing a Higher Quality Connection, Metal Insulation Grip Sleeve Crimps to Wire Insulation Providing Protection to the Crimp Joint for High Vibration Applications, The Internal Wire Stop Assures Proper Wire Insertion Length for a Higher Quality Connection |
| Contact Finish | Tin |
| Minimum Wire Size | 16 AWG |
| Barrel Style | Funnel Entry |
| Tab Thickness | 0.032 in |
| UL 94 Flammability Rating | HB |
| Maximum Voltage | 300 V |
| Maximum Operating Temperature | 194 deg F |
| Tab Width | 1/4 in |
| RoHS Compliant | Yes |
| Maximum Wire Size | 14 AWG |
| Termination Style | Crimp |
| Contact Material | Brass |
| Seam Style | Sleeved Barrel |
| Insulation Material | Nylon |
| Barrel Inside Diameter | 0.101 in |
| Minimum Operating Temperature | -60 deg F |
| Insulation Coverage | Partial Coverage |
| Maximum Wire Size (AWG) | #14 |
| Flammability Rating | UL94-HB |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (mm) | 7.1 |
| Finish/Coating | Tin-Plated |
| Maximum Voltage (V) | 300 |
| Overall Length (In.) | 0.83 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Operating Temperature (°C) | 90 |
| Tab Size (In.) | 0.25 x 0.032 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Overall Height (mm) | 3.1 |
| Wire Strip Length (In.) | 11,933 |
| Overall Width (In.) | 0.29 |
| Overall Width (mm) | 7.4 |
| Product Type | Disconnect |
| Minimum Wire Size (AWG) | #16 |
| Maximum Operating Temperature (°F) | 194 |
| Base Material | Brass |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Disconnect Type | Female Disconnect |
| Tongue Angle | Straight |
| Overall Length (mm) | 21.1 |
| Overall Height (In.) | 0.12 |
| Maximum Voltage (kV) | 0.3 |
| Tab Size (mm) | 6.3 x 0.8 |
| Barrel Type | Funnel |
| Product Name | Terminal Connector |
| Contact Plating | Tin |
| Product Color | Blue |
| Connector Details | 1 x (Quick Disconnect) |
| Environmentally Friendly | Yes |
| Packaging Type | Box |
| Sub Brand | Pan-Term® |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Operating Temperature (°C) | 90 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Operating Temperature (°F) | 194 |
| Package Quantity | 1000 |
