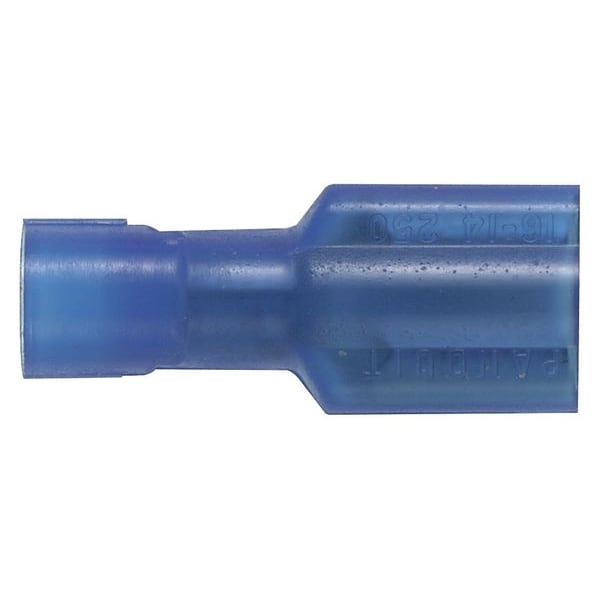

Desconexión hembra, azul, calibre 16-14AWG, paquete de 1000
| Item | Female Disconnect |
|---|---|
| Insulation | Full |
| For Use With | CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525) |
| Insulation Color | Blue |
| Color Code | Blue |
| Wire Range | 16 to 14 AWG |
| Connection Type | Crimp |
| Insulation Type | Nylon |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 0.84 in |
| Seam | Butted |
| Connector Type | Quick Disconnect |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Standards | CSA 22.2 No.153, UL 310 |
| Connection Material | Tin-Plated Brass |
| Barrel Inside Dia. | 0.09 in |
| Features | Flame Retardant |
| Width | 0.4 in |
| RoHS Compliant | Yes |
| Barrel Style | Funnel Entry |
| Contact Material | Brass |
| Insulation Material | Nylon |
| Insulation Coverage | Full Coverage |
| Minimum Wire Size | 16 AWG |
| Contact Finish | Tin |
| Terminal Type | Socket |
| Seam Style | Butted |
| Maximum Wire Size | 14 AWG |
| Tab Thickness | 0.032 in |
| Special Features | Fully Insulated Design Provides Protection From Electrical Shorts, Internal Wire Stop Assures Proper Length of Insertion Into Terminal Barrel, Providing a Higher Quality Connection, The Disconnect can be Inserted and Removed From the Male Tab Without the Use of Additional Tools, The Internal Wire Stop Assures Proper Wire Insertion Length Into the Terminal Barrel for a Higher Quality Connection, and the Funnel Entry Allows for Faster Wire Insertion and Lower Installed Cost |
| Tab Width | 1/4 in |
| Minimum Operating Temperature | -60 deg F |
| UL 94 Flammability Rating | HB |
| Strip Length | 5/16 in |
| Maximum Operating Temperature | 221 deg F |
| Termination Style | Crimp |
| Maximum Voltage | 600 V |
| Barrel Inside Diameter | 0.09 in |
| Flammability Rating | UL94-HB |
| Overall Length (In.) | 0.84 |
| Barrel Type | Funnel |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 105 |
| Wire Strip Length (In.) | 11,933 |
| Overall Height (In.) | 0.22 |
| Maximum Voltage (kV) | 0.6 |
| Overall Length (mm) | 21.3 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Tab Size (In.) | 0.25 x 0.032 |
| Tongue Angle | Straight |
| Maximum Voltage (V) | 600 |
| Wire Strip Length (mm) | 7.1 |
| Finish/Coating | Tin-Plated |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Maximum Operating Temperature (°F) | 221 |
| Overall Width (In.) | 0.35 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Tab Size (mm) | 6.3 x 0.8 |
| Disconnect Type | Female Disconnect |
| Overall Width (mm) | 8.9 |
| Overall Height (mm) | 5.6 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Product Type | Disconnect |
| Base Material | Brass |
| Connector Details | 1 x (Quick Disconnect) |
| Environmentally Friendly | Yes |
| Product Color | Blue |
| Contact Plating | Tin |
| Product Name | Terminal Connector |
| Sub Brand | Pan-Term® |
| Packaging Type | Box |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Package Quantity | 1000 |
