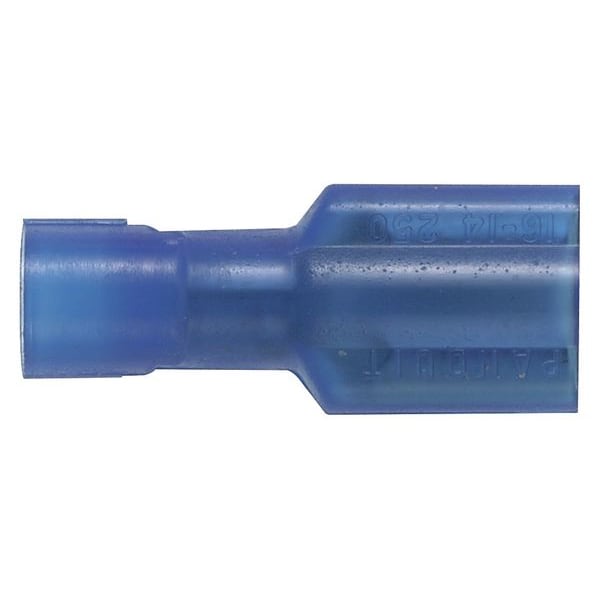

Female Disconnect, Blue, 16-14AWG, PK20
| Item | Female Disconnect |
|---|---|
| Insulation | Full |
| For Use With | CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525) |
| Insulation Color | Blue |
| Color Code | Blue |
| Insulation Type | Nylon |
| Wire Range | 16 to 14 AWG |
| Connection Type | Crimp |
| Overall Length | 0.84 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Butted |
| Connector Type | Quick Disconnect |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Standards | C22.2 No.153, CSA Certified LR31212, UL 310, UL Listed 20H3 E78522 |
| Barrel Inside Dia. | 0.09 in |
| Connection Material | Tin-Plated Brass |
| Features | Flame Retardant |
| Width | 0.4 in |
| Strip Length | 1/4 in |
| Special Features | Disconnect can be Inserted and Removed From the Male Tab Without the Use of Tools for Lower Installed Cost, Fully Insulated Design Provides Protection From Electrical Shorts, Internal Wire Stop Assures Proper Length of Insertion Into Terminal Barrel, Providing a Higher Quality Connection |
| Contact Material | Brass |
| Minimum Operating Temperature | -60 deg F |
| Tab Thickness | 0.032 in |
| Seam Style | Butted |
| Barrel Inside Diameter | 0.09 in |
| Maximum Operating Temperature | 221 deg F |
| Termination Style | Crimp |
| Insulation Coverage | Full Coverage |
| Contact Finish | Tin |
| Maximum Voltage | 600 V |
| Maximum Wire Size | 14 AWG |
| Tab Width | 1/4 in |
| Minimum Wire Size | 16 AWG |
| Terminal Type | Socket |
| RoHS Compliant | Yes |
| Insulation Material | Nylon |
| Barrel Style | Funnel Entry |
| Minimum Wire Size (AWG) | #16 |
| Overall Length (In.) | 0.84 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Operating Temperature (°F) | 221 |
| Barrel Type | Funnel |
| Tongue Angle | Straight |
| Overall Length (mm) | 21.3 |
| Overall Width (mm) | 8.9 |
| Maximum Wire Size (AWG) | #14 |
| Maximum Voltage (V) | 600 |
| Tab Size (In.) | 0.25 x 0.032 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Voltage (kV) | 0.6 |
| Wire Strip Length (In.) | 11,933 |
| Finish/Coating | Tin-Plated |
| Product Type | Disconnect |
| Overall Width (In.) | 0.35 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (In.) | 0.16 |
| Maximum Operating Temperature (°C) | 105 |
| Wire Strip Length (mm) | 7.1 |
| Disconnect Type | Female Disconnect |
| Flammability Rating | UL94-HB |
| Tab Size (mm) | 6.3 x 0.8 |
| Base Material | Brass |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Product Name | Terminal Connector |
| Connector Details | 1 x (Quick Disconnect) |
| Product Color | Blue |
| Environmentally Friendly | Yes |
| Contact Plating | Tin |
| Sub Brand | Pan-Term® |
| Packaging Type | Bag |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Package Quantity | 20 |
