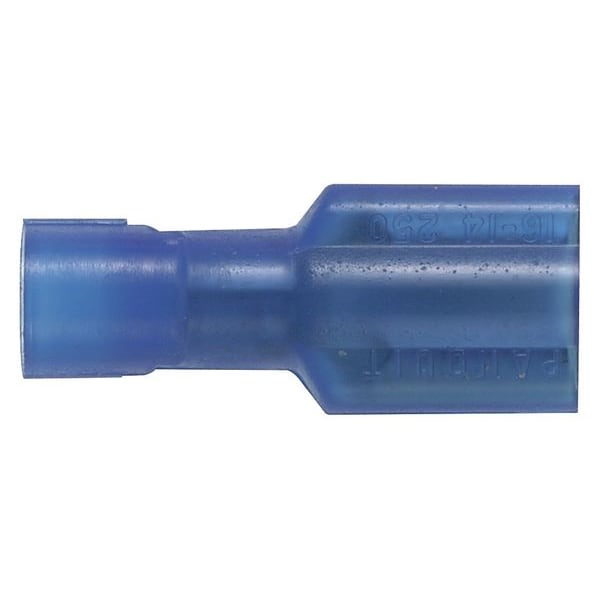

Female Disconnect, Blue, 16-14AWG, PK50
| Item | Female Disconnect |
|---|---|
| Insulation | Full |
| For Use With | CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525) |
| Insulation Color | Blue |
| Color Code | Blue |
| Connection Type | Crimp |
| Wire Range | 16 to 14 AWG |
| Insulation Type | Nylon |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 0.94 in |
| Seam | Sleeved Barrel |
| Connector Type | Quick Disconnect |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Standards | C22.2 No.153, CSA Certified LR31212, UL 310, UL Listed 20H3 E78522 |
| Connection Material | Tin-Plated Brass |
| Barrel Inside Dia. | 0.09 in |
| Features | Flame Retardant |
| Width | 0.4 in |
| Seam Style | Sleeved Barrel |
| UL 94 Flammability Rating | HB |
| Barrel Style | Funnel Entry |
| Maximum Voltage | 600 V |
| Barrel Inside Diameter | 0.09 in |
| Strip Length | 1/4 in |
| Terminal Type | Socket |
| Insulation Coverage | Full Coverage |
| Tab Thickness | 0.032 in |
| Minimum Wire Size | 16 AWG |
| Special Features | Barrel Design With Larger Outside Diameter for Use With More Common Hand Tools, Disconnect can be Inserted and Removed From the Male Tab Without the Use of Tools for Lower Installed Cost, Fully Insulated Design Provides Protection From Electrical Shorts, Internal Wire Stop Assures Proper Length of Insertion Into Terminal Barrel, Providing a Higher Quality Connection |
| Termination Style | Crimp |
| Maximum Operating Temperature | 221 deg F |
| Maximum Wire Size | 14 AWG |
| Minimum Operating Temperature | -60 deg F |
| RoHS Compliant | Yes |
| Insulation Material | Nylon |
| Tab Width | 1/4 in |
| Contact Finish | Tin |
| Contact Material | Brass |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Finish/Coating | Tin-Plated |
| Insulation Diameter (mm) | 4.1 |
| Product Type | Disconnect |
| Overall Length (In.) | 0.94 |
| Maximum Operating Temperature (°C) | 221 |
| Wire Strip Length (mm) | 7.1 |
| Note | DNF14-250FI-L replaces DNF14-250FI-C |
| Overall Width (mm) | 9.1 |
| Wire Strip Length (In.) | 11,933 |
| Maximum Voltage (kV) | 0.6 |
| Disconnect Type | Female Disconnect |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Barrel Type | Funnel |
| Maximum Operating Temperature (°F) | 105 |
| Flammability Rating | UL94-HB |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Tab Size (mm) | 6.3 x 0.8 |
| Overall Length (mm) | 23.9 |
| Tab Size (In.) | 0.25 x 0.032 |
| Tongue Angle | Straight |
| Minimum Wire Size (AWG) | #16 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Base Material | Brass |
| Maximum Wire Size (AWG) | #14 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Overall Width (In.) | 0.36 |
| Maximum Voltage (V) | 600 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Insulation Diameter (In.) | 0.16 |
| Product Color | Blue |
| Contact Plating | Tin |
| Environmentally Friendly | Yes |
| Connector Details | 1 x (Quick Disconnect) |
| Product Name | Terminal Connector |
| Sub Brand | Pan-Term® |
| Packaging Type | Bottle |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Operating Temperature (°C) | 221 |
| Maximum Operating Temperature (°F) | 105 |
| Package Quantity | 50 |
