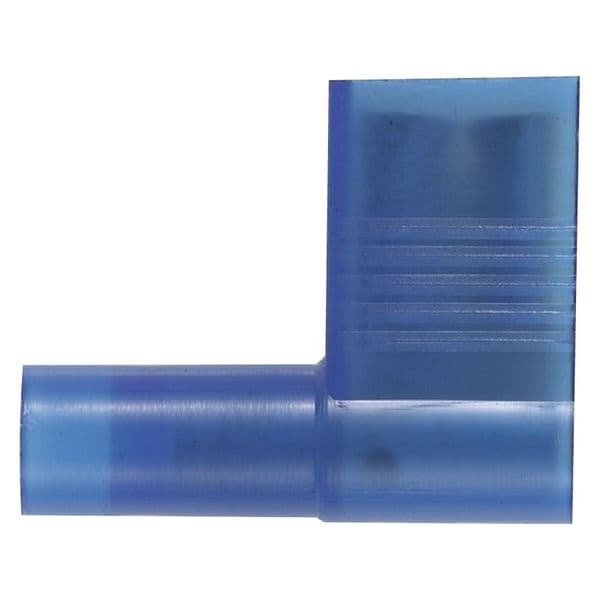

Desconexión hembra, Nylon, 16-14AWG, paquete de 50
| Item | Female Disconnect,Nylon,16-14AWG,PK50 |
|---|---|
| For Use With | CT-300-1 |
| Color Code | Blue |
| Insulation Type | Fully Insulated |
| Overall Length | 0.78 in |
| Features | Flame Retardant, Right-angled Connector |
| Width | 0.4 in |
| Finish | Tinned |
| Height | 0.2 in |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Disconnect Type | Female Disconnect-Right Angle |
| Product Type | Disconnect |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Tab Size (In.) | 0.25 x 0.032 |
| Wire Strip Length (In.) | 11,933 |
| Overall Height (mm) | 5.1 |
| Overall Length (mm) | 16 |
| Minimum Wire Size (AWG) | #16 |
| Maximum Operating Temperature (°F) | 221 |
| Note | DNFR14-250B-L replaces DNFR14-250B-C |
| Overall Length (In.) | 0.63 |
| Tab Size (mm) | 6.3 x 0.8 |
| Overall Width (mm) | 16 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Wire Size (AWG) | #14 |
| Insulation Material | Nylon |
| Tongue Angle | Right Angle |
| Barrel Type | Funnel |
| Maximum Voltage (V) | 600 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Wire Strip Length (mm) | 7.1 |
| Base Material | Brass |
| Maximum Wire Insulation Diameter (In.) | 0.155 |
| Maximum Wire Insulation Diameter (mm) | 3.94 |
| Flammability Rating | UL94-HB |
| Overall Width (In.) | 0.63 |
| Overall Height (In.) | 0.2 |
| Contact Plating | Tin |
| Product Name | Terminal Connector |
| Product Material | Brass |
| Product Color | Blue |
| Connector Details | 1 x (Quick Disconnect) |
| Max Operating Temperature | 105 degrees celsius |
| Depth | 0.63 in |
| Product Class | Disconnects |
| Package Quantity | 50 |
