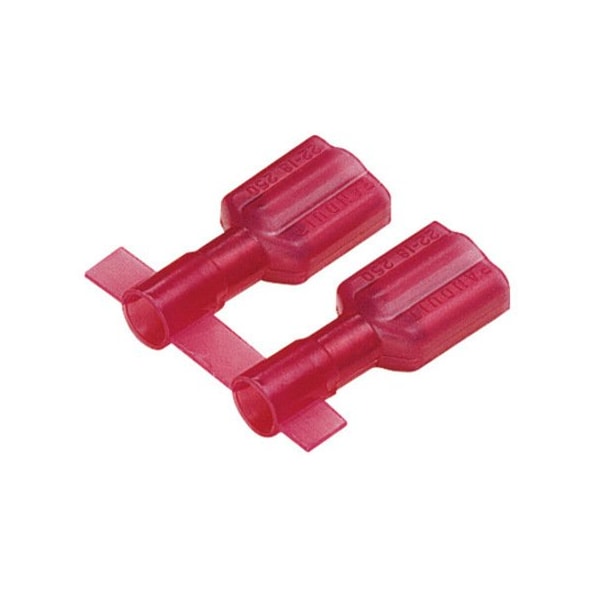

Desconexión hembra, Nylon, 22-18AWG, paquete de 3000
| Item | Female Disconnect,Nylon,22-18AWG,PK3000 |
|---|---|
| For Use With | Crimp press with CA9 (CD9-7A) or CA-800EZ (CD-800-7) applicator |
| Color Code | Red |
| Insulation Type | Fully Insulated |
| Overall Length | 0.71 in |
| Features | Flame Retardant, Molded |
| Width | 0.2 in |
| Finish | Tinned |
| Height | 0.15 in |
| Barrel Type | Funnel |
| Maximum Copper Conductor Size (AWG) | #18 |
| Finish/Coating | Tin-Plated |
| Base Material | Brass |
| Overall Width (mm) | 4.8 |
| Maximum Wire Insulation Diameter (In.) | 0.12 |
| Disconnect Type | Female Disconnect |
| Tab Size (In.) | 0.11 x 0.02 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Size (AWG) | #18 |
| Overall Height (In.) | 0.15 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 11,871 |
| Tongue Angle | Straight |
| Maximum Voltage (V) | 600 |
| Overall Length (In.) | 0.71 |
| Wire Strip Length (mm) | 5.6 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Wire Insulation Diameter (mm) | 3 |
| Overall Length (mm) | 18 |
| Flammability Rating | UL94-HB |
| Overall Width (In.) | 0.19 |
| Overall Height (mm) | 3.8 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Product Type | Disconnect |
| Insulation Material | Nylon |
| Tab Size (mm) | 2.8 x 0.5 |
| Product Name | Terminal Connector |
| Product Color | Red |
| Contact Plating | Tin |
| Connector Details | 1 x (Quick Disconnect) |
| Product Class | Disconnects |
| Package Quantity | 3000 |
