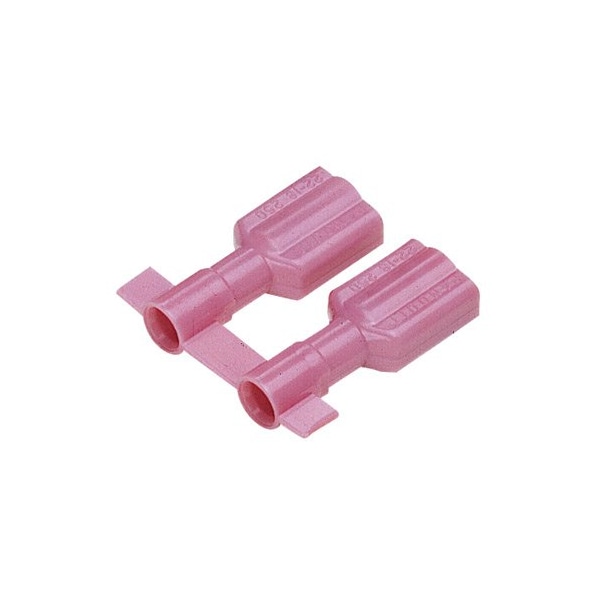

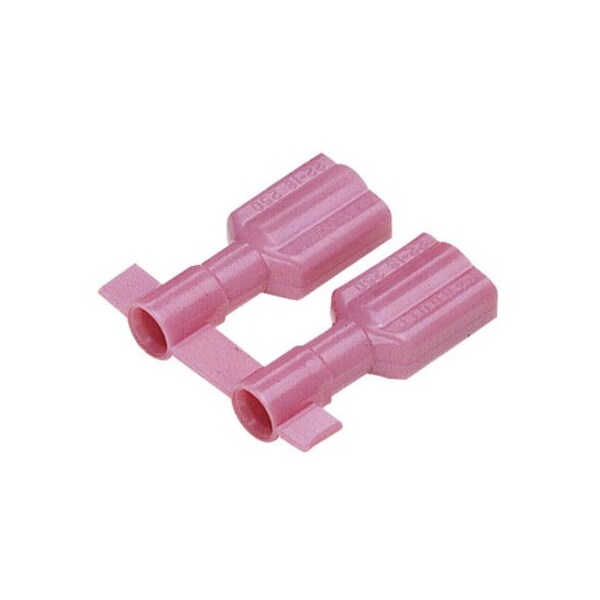

Desconexión hembra, totalmente aislada con nylon premium, DPF18-205FIB-3K, paquete de 3000 unidades.
| Style | Female Disconnect |
|---|---|
| Insulation | Nylon - Fully Insulated |
| Wire Range | 22 to 18 AWG |
| Overall Length | 0.78 in |
| Features | Flame Retardant, Molded, Strain Relief |
| Standards | UL 310 Listed |
| Height | 0.22 in |
| Width | 0.3 in |
| Type | Fully Insulated |
| Base Material | Brass |
| Height (mm) | 5.6 |
| Panduit Color Code | Red |
| Length (In.) | 0.78 |
| Height (In.) | 0.22 |
| Width In (mm) | 0.31 |
| Tab Size In. (mm) | 0.187/0.205 x 0.032 (4.8/5.2 x 0.8) |
| UL Listed | Yes |
| Barrel Type | Butted Seam |
| CSA Certified | C22.2 No.153 |
| Max. Voltage Rating | 600V |
| Max. Ins. | 0.136 |
| Width (mm) | 7.9 |
| Wire Range (mm²) | 0.5 to 1 |
| Width (In.) | 0.31 |
| Model (Design) | Sleeve |
| Tool | CA9 Applicator, CA-800EZ Applicator |
| Barrel Configuration | Funnel Entry |
| Pieces Per Reel | 3000 |
| Length In (mm) | 0.78 |
| Tab Size (In.) | 0.187/0.205 x 0.032 |
| Tab Size (mm) | 4.8/5.2 x 0.8 |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Max. Ins. (mm) | 3.5 |
| Plating Type | Tinned |
| Max. Insulation Diameter In. (mm) | 0.136 |
| Flammability Rating | V2 |
| Wire Strip Length In. (mm) | 9/32" (.2812) (7.1) |
| Wire Range In. (mm²) | 22 - 18 AWG (0.5 - 1.0) |
| Length (mm) | 19.8 |
| Product Color | Red |
| Product Type | Terminal Connector |
| Connector Details | 1 x (Quick Disconnect) |
| Product Name | Terminal Connector |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Product Class | Wire Termination |
| Max Operating Temperature | 105 degrees celsius |
| Package Quantity | 3000 |
