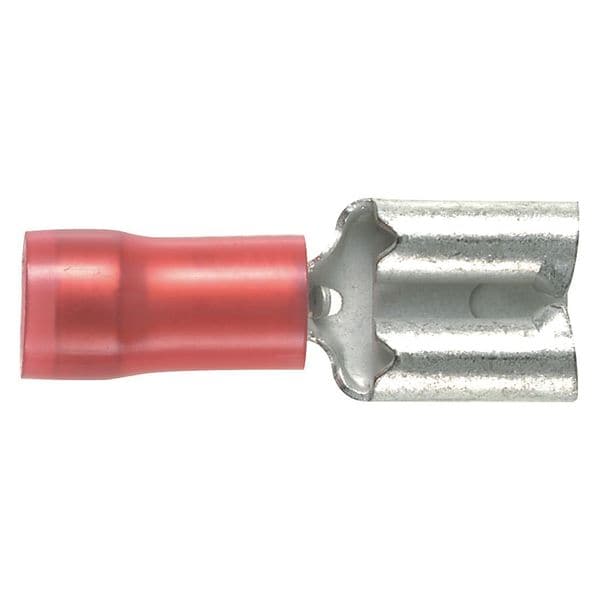

Desconexión hembra, color rojo, calibre 22-18 AWG, paquete de 100.
| Item | Female Disconnect |
|---|---|
| Insulation | Partial |
| For Use With | CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Insulation Color | Red |
| Color Code | Red |
| Insulation Type | Nylon |
| Wire Range | 22 to 18 AWG |
| Connection Type | Crimp |
| Overall Length | 0.81 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Sleeved Barrel |
| Connector Type | Quick Disconnect |
| Max. Temp. | 194 deg F |
| Max. Voltage | 300 V |
| Connection Material | Tin-Plated Brass |
| Standards | CSA 22.2 No.153, UL 310 |
| Barrel Inside Dia. | 0.074 in |
| Features | Flame Retardant |
| Width | 0.3 in |
| Minimum Wire Size | 22 AWG |
| Contact Material | Brass |
| UL 94 Flammability Rating | HB |
| Insulation Material | Nylon |
| Seam Style | Sleeved Barrel |
| Maximum Wire Size | 18 AWG |
| Strip Length | 5/16 in |
| Maximum Voltage | 300 V |
| Tab Width | 1/4 in |
| Terminal Type | Socket |
| Termination Style | Crimp |
| Minimum Operating Temperature | -60 deg F |
| Maximum Operating Temperature | 194 deg F |
| Barrel Inside Diameter | 0.074 in |
| Special Features | Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Disconnect can be Inserted and Removed From the Male Tab Without the Use of Tools for Lower Installed Cost, Metal Insulation Grip Sleeve Crimps to Wire Insulation Providing Protection to the Crimp Joint for High Vibration Applications, The Internal Wire Stop Assures Proper Wire Insertion Length for a Higher Quality Connection |
| RoHS Compliant | Yes |
| Contact Finish | Tin |
| Tab Thickness | 0.032 in |
| Barrel Style | Funnel Entry |
| Insulation Coverage | Partial Coverage |
| Maximum Wire Size (AWG) | #18 |
| Overall Width (mm) | 7.4 |
| Barrel Type | Funnel |
| Product Type | Disconnect |
| Base Material | Brass |
| Tab Size (mm) | 6.3 x 0.8 |
| Maximum Operating Temperature (°F) | 194 |
| Maximum Voltage (kV) | 0.3 |
| Flammability Rating | UL94-HB |
| Maximum Wire Insulation Diameter (mm) | 3.6 |
| Disconnect Type | Female Disconnect |
| Wire Strip Length (In.) | 11,933 |
| Tab Size (In.) | 0.25 x 0.032 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Overall Height (In.) | 0.12 |
| Overall Height (mm) | 3.1 |
| Overall Width (In.) | 0.29 |
| Maximum Copper Conductor Size (AWG) | #18 |
| Overall Length (In.) | 0.81 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (mm) | 7.1 |
| Overall Length (mm) | 20.6 |
| Maximum Operating Temperature (°C) | 90 |
| Tongue Angle | Straight |
| Maximum Wire Insulation Diameter (In.) | 0.14 |
| Maximum Voltage (V) | 300 |
| Minimum Wire Size (AWG) | #22 |
| Finish/Coating | Tin-Plated |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Product Name | Terminal Connector |
| Product Color | Red |
| Environmentally Friendly | Yes |
| Connector Details | 1 x (Quick Disconnect) |
| Contact Plating | Tin |
| Sub Brand | Pan-Term® |
| Packaging Type | Bottle |
| Maximum Operating Temperature (°C) | 90 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Operating Temperature (°F) | 194 |
| Package Quantity | 100 |
