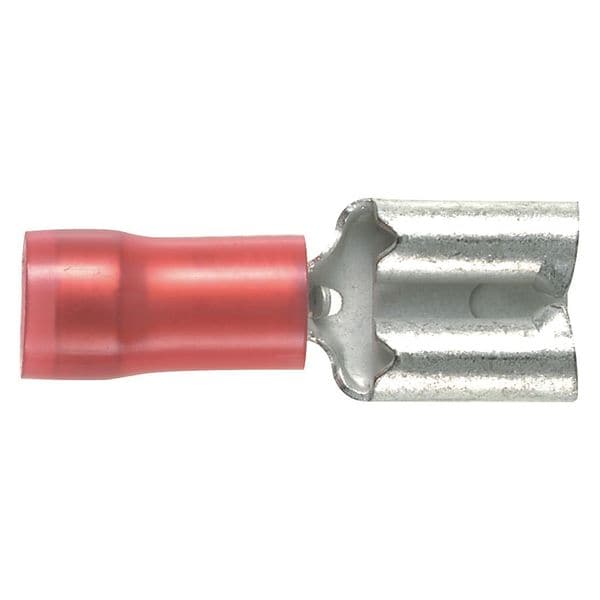

Female Disconnect, Red, 22-18AWG, PK1000
| Item | Female Disconnect |
|---|---|
| Insulation | Partial |
| Insulation Color | Red |
| Connection Type | Crimp |
| Insulation Type | Nylon |
| Wire Range | 22 to 18 AWG |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 0.81 in |
| Seam | Sleeved Barrel |
| Max. Temp. | 194 deg F |
| Max. Voltage | 300 V |
| Barrel Inside Dia. | 0.074 in |
| Standards | C22.2 No.153, CSA Certified LR31212, UL 310 Listed, UL Listed 20H3 E78522 |
| Connection Material | Tin-Plated Brass |
| Seam Style | Sleeved Barrel |
| Maximum Wire Size | 18 AWG |
| Contact Finish | Tin |
| Barrel Inside Diameter | 0.074 in |
| Tab Width | 1/4 in |
| Maximum Operating Temperature | 194 deg F |
| Tab Thickness | 0.032 in |
| RoHS Compliant | Yes |
| Terminal Type | Socket |
| Insulation Coverage | Partial Coverage |
| Barrel Style | Sleeved Barrel |
| Maximum Voltage | 300 V |
| Contact Material | Brass |
| Termination Style | Crimp |
| Special Features | Disconnect can be Inserted and Removed From the Male Tab Without the Use of Tools for Lower Installed Cost, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Internal Wire Stop Assures Proper Length of Insertion Into Terminal Barrel, Providing a Higher Quality Connection, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications, Vibration Resistant |
| Insulation Material | Nylon |
| Strip Length | 1/4 in |
| UL 94 Flammability Rating | V-2, HB |
| Minimum Wire Size | 22 AWG |
| Minimum Operating Temperature | -60 deg F |
| Package Quantity | 1000 |
