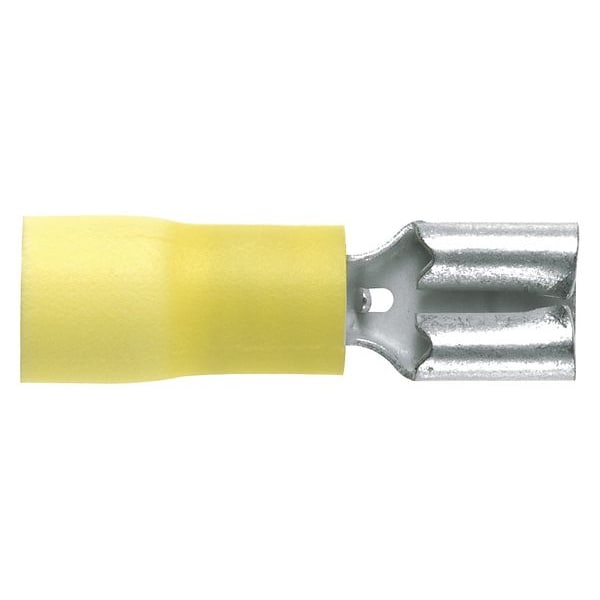

Desconexión hembra, vinilo, 1.03 pulgadas, paquete de 50.
| Item | Female Disconnect |
|---|---|
| Insulation | Full |
| For Use With | CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Color Code | Yellow |
| Connection Type | Crimp |
| Insulation Type | Vinyl |
| Wire Range | 12 to 10 AWG |
| Tab Size | 0.250 in x 0.032 in |
| Overall Length | 1.03 in |
| Seam | Sleeved Barrel |
| Connector Type | Quick Disconnect |
| Max. Temp. | 194 deg F |
| Max. Voltage | 600 V |
| Connection Material | Tin-Plated Brass |
| Standards | CSA22.2 No. 153, UL 310 Recognized |
| Features | Flame Retardant |
| Width | 0.3 in |
| Overall Length (mm) | 26.16 |
| Barrel Type | Funnel |
| Maximum Voltage (kV) | 0.6 |
| Tongue Angle | Straight |
| Maximum Voltage (V) | 600 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Overall Width (In.) | 0.3 |
| Tab Size (mm) | 6.3 x 0.8 |
| Finish/Coating | Tin-Plated |
| Overall Length (In.) | 1.03 |
| Wire Strip Length (In.) | 11,933 |
| Maximum Wire Size (AWG) | #10 |
| Insulation Material | Vinyl |
| Tab Size (In.) | 0.25 x 0.032 |
| Minimum Wire Size (AWG) | #12 |
| Maximum Wire Insulation Diameter (mm) | 5.8 |
| Product Type | Disconnect |
| Flammability Rating | UL94V-0 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Base Material | Brass |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Insulation Diameter (In.) | 0.23 |
| Disconnect Type | Female Disconnect |
| Maximum Metric Conductor Size (mm²) | 6 |
| Overall Height (mm) | 3.3 |
| Overall Height (In.) | 0.13 |
| Overall Width (mm) | 7.62 |
| Wire Strip Length (mm) | 7.1 |
| Contact Plating | Tin |
| Environmentally Friendly | Yes |
| Product Name | Terminal Connector |
| Connector Details | 1 x (Quick Disconnect) |
| Product Color | Yellow |
| Product Material | Copper |
| Sub Brand | Pan-Term® |
| Packaging Type | Bottle |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Package Quantity | 50 |
