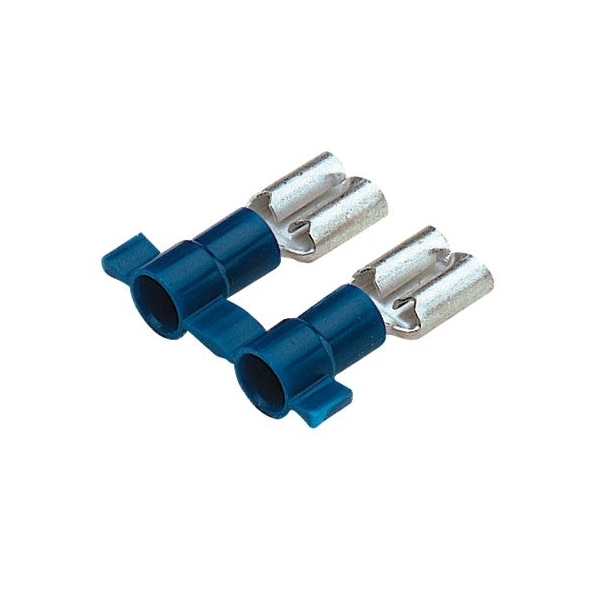

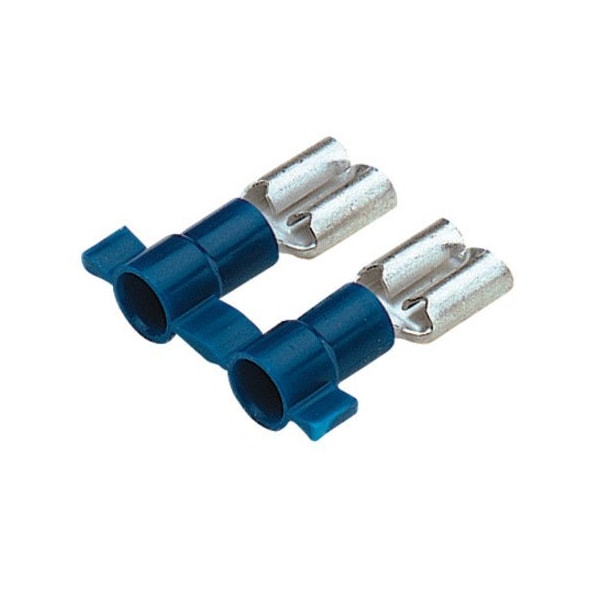

Desconectador hembra, aislante de barril de vinil.
| For Use With | Crimp press with CA9 (CD9-2A) or CA-800EZ (CD-800-2) applicator |
|---|---|
| Color Code | Blue |
| Insulation Type | Barrel Insulated |
| Overall Length | 0.77 in |
| Features | Flame Retardant, Molded |
| Width | 0.2 in |
| Finish | Tinned |
| Height | 0.9 in |
| Disconnect Type | Female Disconnect |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Finish/Coating | Tin-Plated |
| Overall Width (In.) | 0.23 |
| Overall Height (mm) | 2.3 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Overall Width (mm) | 5.8 |
| Tab Size (mm) | 4.8 x 0.5 |
| Minimum Wire Size (AWG) | #16 |
| Tongue Angle | Straight |
| Minimum Copper Conductor Size (AWG) | #16 |
| Product Type | Disconnect |
| Seam Type | Butted |
| Maximum Voltage (V) | 600 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Insulation Diameter (mm) | 4.3 |
| Maximum Operating Temperature (°F) | 302 |
| Tab Size (In.) | 0.187 x 0.02 |
| Barrel Type | Funnel |
| Wire Strip Length (mm) | 7.1 |
| Maximum Wire Size (AWG) | #14 |
| Overall Length (mm) | 19.6 |
| Wire Strip Length (In.) | 11,933 |
| Maximum Voltage (kV) | 0.6 |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (mm) | 4.3 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Overall Height (In.) | 0.09 |
| Insulation Diameter (In.) | 0.17 |
| Base Material | Brass |
| Insulation Material | Vinyl |
| Maximum Wire Insulation Diameter (In.) | 0.17 |
| Overall Length (In.) | 0.77 |
| Maximum Operating Temperature (°C) | 150 |
| Product Color | Blue |
| Contact Plating | Tin |
| Connector Details | 1 x (Quick Disconnect) |
| Product Name | Terminal Connector |
| Product Class | Wire Termination |
| Max Operating Temperature | 150 degrees celsius |
| Package Quantity | 3000 |
