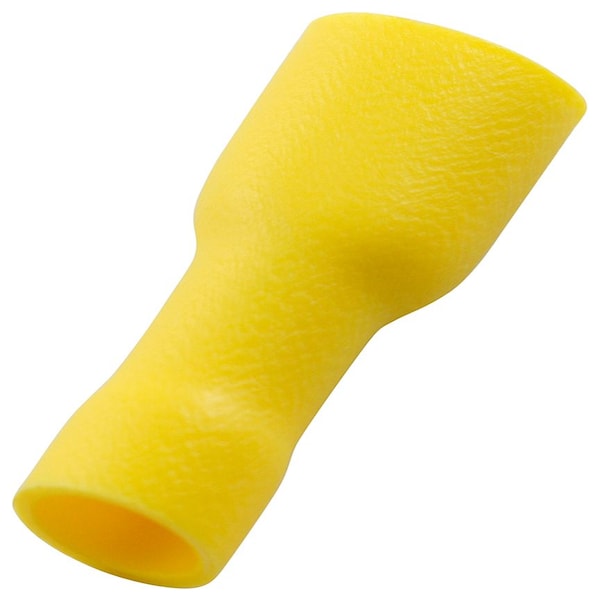

El conector hembra Panduit está hecho de vinilo y cuenta con aislamiento completo. Cada paquete contiene 25 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Insulation Color | Yellow |
| Item | Female Disconnect,Vyl,Full Insul,PK25 |
| Max. Voltage | 300 V |
| Terminal Type | Female Disconnect |
| Standards | cULus, E78522 |
| Overall Length | 0.97 in |
| Seam | Butted |
| Max. Temp. | 167 deg F |
| Connection Material | Brass |
| Finish | Tin-Plated |
| Width | 0.26 in |
| Insulation Dia | 0.2 in |
| Color Coding | Yellow |
| Product Class | Wire Termination |
| Barrel Type | Seam |
| Max Operating Temperature | 75 degrees celsius |
| Package Quantity | 25 |
