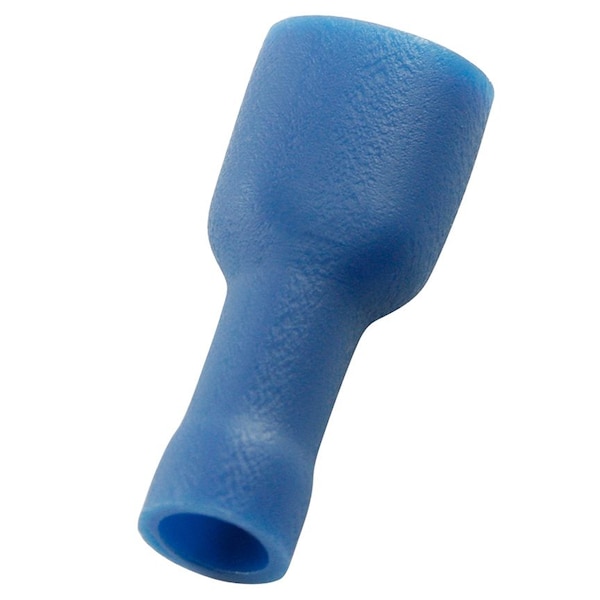

Desconexión hembra, Vyl, aislamiento completo, paquete de 25.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Insulation Color | Blue |
| Item | Female Disconnect,Vyl,Full Insul,PK25 |
| Max. Voltage | 300 V |
| Seam | Butted |
| Overall Length | 0.87 in |
| Connection Material | Brass |
| Max. Temp. | 167 deg F |
| Terminal Type | Female Disconnect |
| Standards | cULus, E78522 |
| Width | 0.26 in |
| Finish | Tin-Plated |
| Insulation Dia | 0.17 in |
| Barrel Type | Seam |
| Max Operating Temperature | 75 degrees celsius |
| Product Class | Wire Termination |
| Color Coding | Blue |
| Package Quantity | 25 |
