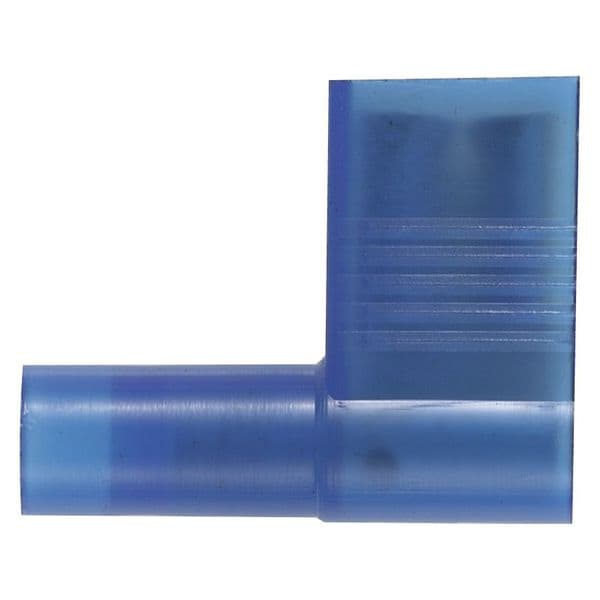

Desconectores de bandera hembra, azul, calibre 16-14 AWG, paquete con 1000 piezas.
| Item | Female Flag Disconnect |
|---|---|
| Insulation | Full |
| Insulation Color | Blue |
| Insulation Type | Nylon |
| Wire Range | 16 to 14 AWG |
| Connection Type | Crimp |
| Overall Length | 0.6 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Butted |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Standards | CSA 22.2 No.153, UL 310 |
| Barrel Inside Dia. | 0.08 in |
| Connection Material | Tin-Plated Brass |
| Contact Finish | Tin |
| Seam Style | Butted |
| Special Features | Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Fully Insulated Design Provides Protection From Electrical Shorts, Funnel Entry Design Allows for Faster Wire Insertion and Lower Installed Cost, Right Angle Design Allows for Use in Limited Space Applications, The Internal Wire Stop Assures Proper Wire Insertion Length for a Higher Quality Connection |
| UL 94 Flammability Rating | HB |
| Terminal Type | Socket |
| Termination Style | Crimp |
| Insulation Coverage | Full Coverage |
| Contact Material | Brass |
| Maximum Voltage | 600 V |
| Connection Orientation | 90 Degrees Angled |
| Strip Length | 3/8 in |
| Insulation Material | Nylon |
| Barrel Style | Funnel Entry |
| Minimum Operating Temperature | -60 deg F |
| Minimum Wire Size | 16 AWG |
| Tab Width | 1/4 in |
| Maximum Wire Size | 14 AWG |
| Maximum Operating Temperature | 221 deg F |
| Barrel Inside Diameter | 0.08 in |
| RoHS Compliant | Yes |
| Tab Thickness | 0.032 in |
| Package Quantity | 1000 |
