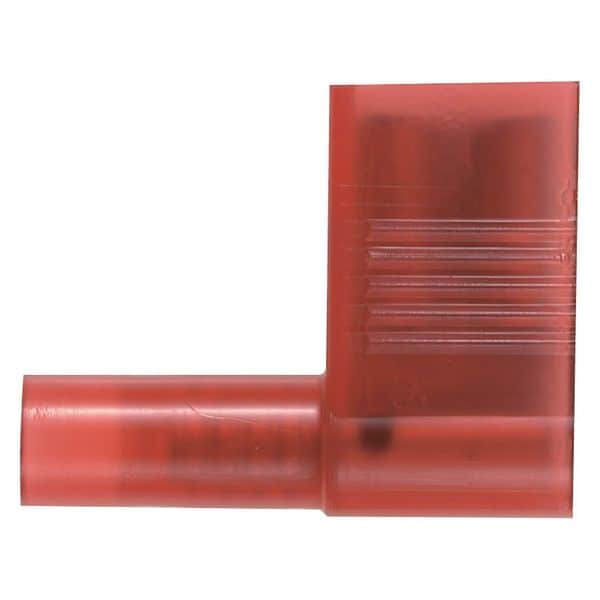

Desconector de bandera hembra, rojo, calibre 22-18, paquete de 1000.
| Item | Female Flag Disconnect |
|---|---|
| Insulation | Full |
| Insulation Color | Red |
| Insulation Type | Nylon |
| Connection Type | Crimp |
| Wire Range | 22 to 18 AWG |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 0.6 in |
| Seam | Butted |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Standards | CSA 22.2 No.153, UL 310 |
| Barrel Inside Dia. | 0.062 in |
| Connection Material | Tin-Plated Brass |
| Contact Finish | Tin |
| Strip Length | 3/8 in |
| Terminal Type | Socket |
| RoHS Compliant | Yes |
| Maximum Operating Temperature | 221 deg F |
| Tab Width | 1/4 in |
| Termination Style | Crimp |
| Maximum Voltage | 600 V |
| Special Features | Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Fully Insulated Design Provides Protection From Electrical Shorts, Funnel Entry Design Allows for Faster Wire Insertion and Lower Installed Cost, Right Angle Design Allows for Use in Limited Space Applications, The Internal Wire Stop Assures Proper Wire Insertion Length for a Higher Quality Connection |
| Seam Style | Butted |
| Minimum Wire Size | 22 AWG |
| UL 94 Flammability Rating | HB |
| Insulation Coverage | Full Coverage |
| Connection Orientation | 90 Degrees Angled |
| Barrel Inside Diameter | 0.062 in |
| Insulation Material | Nylon |
| Maximum Wire Size | 18 AWG |
| Barrel Style | Funnel Entry |
| Minimum Operating Temperature | -60 deg F |
| Tab Thickness | 0.032 in |
| Contact Material | Brass |
| Package Quantity | 1000 |
